FS12-200-C2 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Class 2/3, 2.5 V A, 6.3/12.6VDC (Nominal Secondary) Output, 12.6VDC CT at 0.2A Secondary in Series, 6.3VDC at 0.4A Secondary in Parallel, 8Pin

Download FS12-200-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS12-200-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

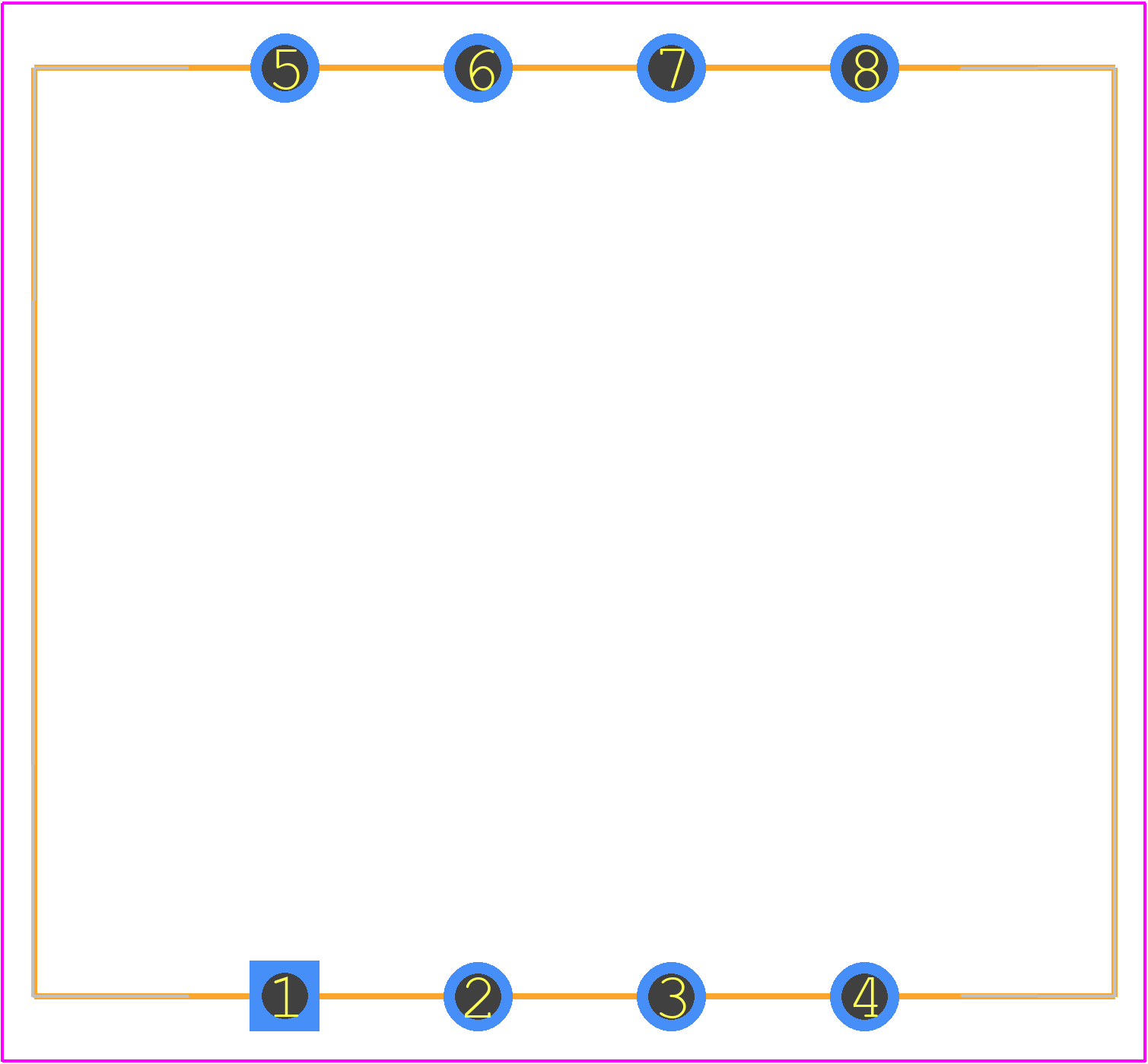

FS12-200-C2 - Triad Magnetics PCB footprint - Other - Other - FS12-200-C2
click to zoom
3D Models
FS12-200-C2 - Triad Magnetics - 3D model - Other - FS12-200-C2
click to zoom

FS12-200-C2 Details

  • Manufacturer Part Number:

    FS12-200-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.4 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS12-200-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS12-200-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the FS12-200-C2 is suitable for use in switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the FS12-200-C2 is 130°C, but derating may be required for high-temperature applications.
  • Yes, the FS12-200-C2 meets the requirements of UL 1561 and IEC 61558 safety standards for transformers.
  • Yes, the FS12-200-C2 can be used in high-reliability or military applications, but the designer should ensure that the transformer meets the specific requirements of the application, including environmental and performance requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS12-200-C2 Overview

Use the download button to access the FS12-200-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS12-, or try a keyword search, such as Power/Mains Transformers
