Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) spacing between the transformer and other components, and a PCB layout that minimizes noise coupling and electromagnetic interference (EMI). A well-designed PCB layout can help reduce radiated emissions and improve overall system performance.
Proper thermal management is crucial for the FS12-500-C2. Ensure good airflow around the transformer, and consider using a heat sink or thermal interface material if the transformer is expected to operate at high temperatures. The transformer's temperature rating is 130°C, and exceeding this temperature can reduce its lifespan.
Triad Magnetics recommends using a minimum of 18 AWG wire for the primary winding and 20 AWG wire for the secondary winding. The wire insulation should be rated for at least 150°C, and the wire should be sized to handle the maximum expected current.
The FS12-500-C2 is designed for general-purpose applications and may not be suitable for high-vibration or high-shock environments. If your application requires operation in such conditions, consider using a transformer specifically designed for ruggedized or high-reliability applications.
To ensure EMC, follow proper PCB layout and design practices, use shielding and filtering as necessary, and consider using a transformer with built-in shielding or a metal core. Additionally, ensure that the transformer is properly grounded and that the system meets relevant EMC standards and regulations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS12-500-C2 Overview

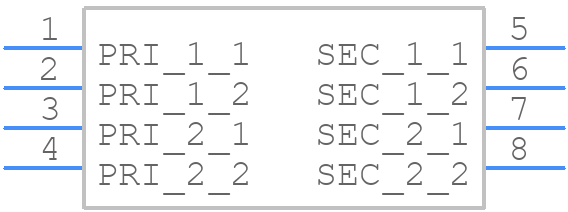

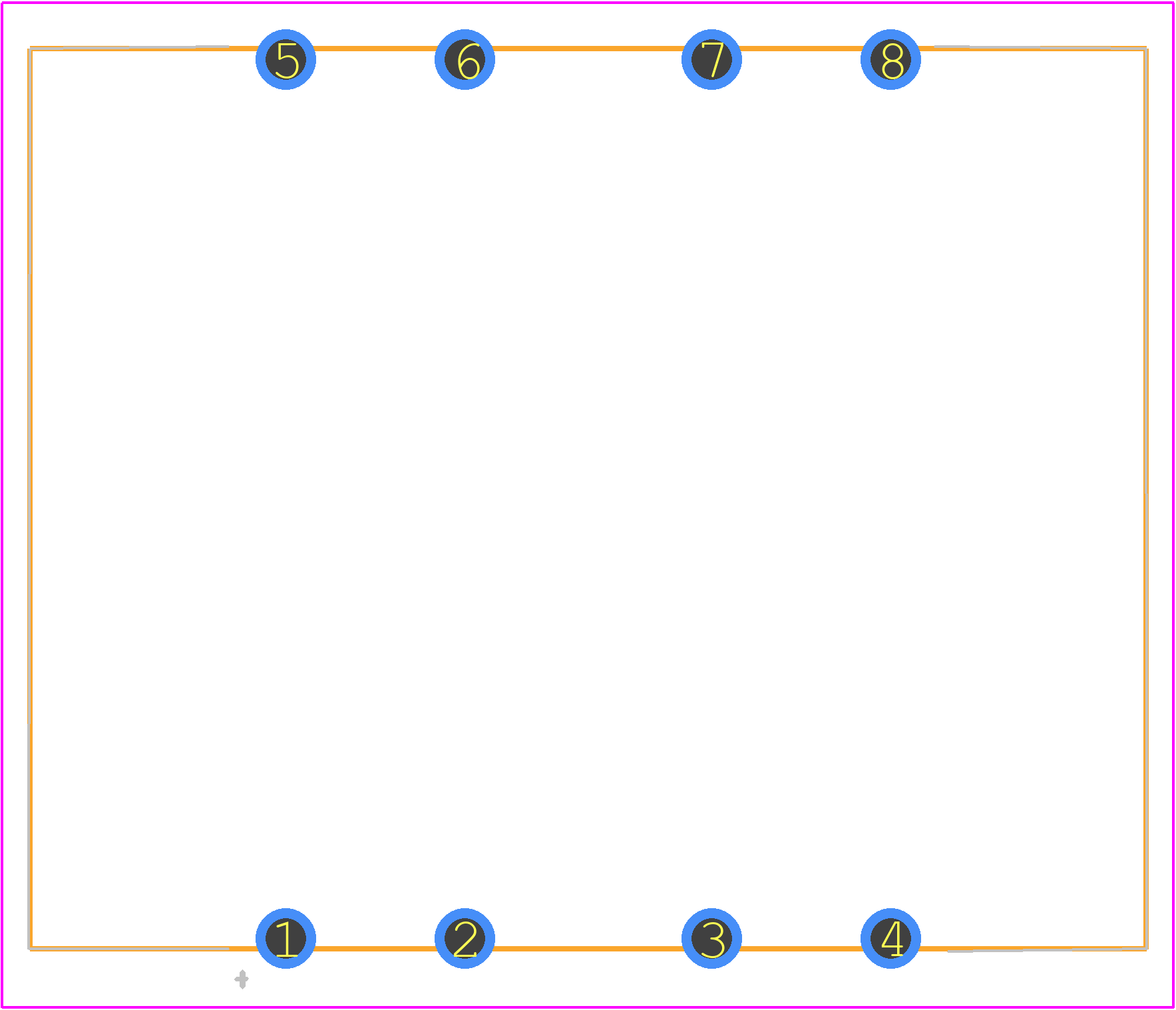

Use the download button to access the FS12-500-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS12-,
or try a keyword search, such as Power/Mains Transformers
