FS1403-5000-AL - TDK

Description: 3A Rated Non-Isolated DC/DC Converters 5.0V uPOL Power Module

Download FS1403-5000-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

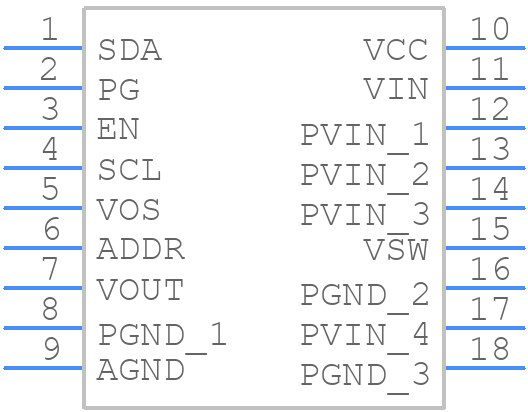

FS1403-5000-AL - TDK - PCB symbol
click to zoom
PCB Footprints
FS1403-5000-AL - TDK PCB footprint - Other - Other - FS140X
click to zoom
3D Models
FS1403-5000-AL - TDK - 3D model - Other - FS140X
click to zoom

FS1403-5000-AL Details

  • Manufacturer Part Number:

    FS1403-5000-AL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    TDK Corporation

  • Analog IC - Other Type:

    SWITCHING REGULATOR

FS1403-5000-AL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the FS1403-5000-AL involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the component near the power source to minimize inductance.
  • The FS1403-5000-AL has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. The OVP feature limits the output voltage to a safe level, while the OCP feature limits the output current to prevent damage to the component.
  • The operating temperature range of the FS1403-5000-AL is -40°C to +85°C, making it suitable for use in a wide range of applications.
  • Yes, the FS1403-5000-AL is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The typical efficiency of the FS1403-5000-AL is around 95%, making it a highly efficient DC-DC converter for its class.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS1403-5000-AL Overview

Use the download button to access the FS1403-5000-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS140, or try a keyword search, such as Switching Regulator or Controllers
