TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
To ensure reliability in high-temperature applications, it's essential to follow TDK's recommended derating guidelines for temperature and power handling. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, and avoid exceeding the maximum operating temperature of 125°C.
TDK recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s or less. It's also essential to follow the IPC-J-STD-020 standard for soldering electronic components.
Yes, the FS1404-2500-AL is designed to withstand vibrations up to 10G (10-2000Hz) according to IEC 60068-2-6. However, it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress and damage.
To troubleshoot issues with the FS1404-2500-AL, start by verifying the input voltage, output load, and ambient temperature are within the recommended specifications. Check for proper PCB layout, soldering, and thermal management. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult TDK's application notes and technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1404-2500-AL Overview

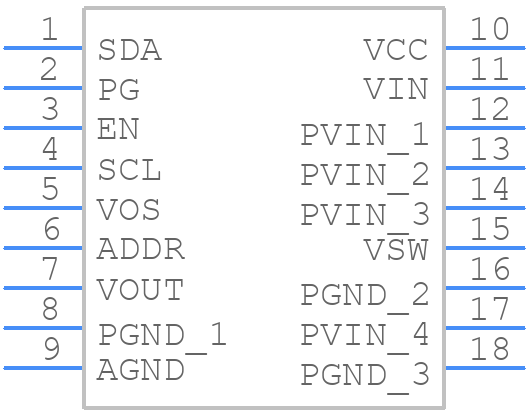

Use the download button to access the FS1404-2500-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS140,
or try a keyword search, such as Switching Regulator or Controllers
