FS1406-0600-AS - TDK

Description: 6A Rated Non-Isolated DC/DC Converters 0.60V uPOL Power Module

Download FS1406-0600-AS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

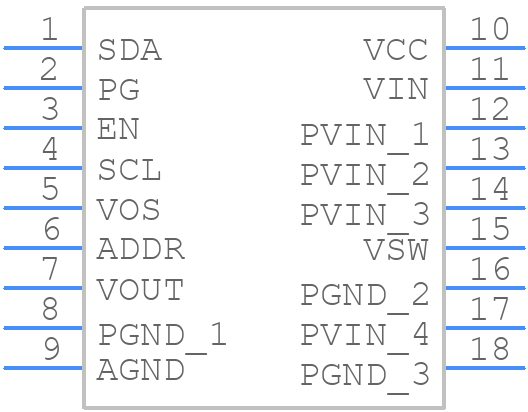

FS1406-0600-AS - TDK - PCB symbol
click to zoom
PCB Footprints
FS1406-0600-AS - TDK PCB footprint - Other - Other - FS140X
click to zoom
3D Models
FS1406-0600-AS - TDK - 3D model - Other - FS140X
click to zoom

FS1406-0600-AS Details

  • Manufacturer Part Number:

    FS1406-0600-AS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    TDK Corporation

  • Additional Feature:

    INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XBCC-N17

  • Length:

    3.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    2.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Equivalence Code:

    LCC17,.13SQ,(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    3.3 mm

FS1406-0600-AS Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the FS1406-0600-AS can be found in the TDK Corporation's application note or design guide. It's essential to follow the recommended layout to ensure optimal performance, minimize electromagnetic interference, and prevent thermal issues.
  • The FS1406-0600-AS is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). The component's shielded construction and internal filtering help to reduce high-frequency noise and EMI. However, additional shielding or filtering may be required depending on the specific application and environment.
  • The FS1406-0600-AS has an operating temperature range of -40°C to +125°C. However, the component's performance and reliability may degrade if operated at extreme temperatures. It's essential to ensure the component is operated within the recommended temperature range for optimal performance and longevity.
  • Yes, the FS1406-0600-AS requires proper storage and handling to prevent damage. The component should be stored in a dry, cool place, away from direct sunlight and moisture. It's also essential to handle the component by the body, avoiding touching the pins or electrical contacts to prevent damage or contamination.
  • The FS1406-0600-AS is designed for general-purpose applications. However, it may not meet the specific requirements for high-reliability or safety-critical applications. Engineers should consult with TDK Corporation or a qualified reliability engineer to determine the component's suitability for such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS1406-0600-AS Overview

Use the download button to access the FS1406-0600-AS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS140, or try a keyword search, such as Switching Regulator or Controllers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
