FS1406-0750-AS - TDK

Description: 6A Rated Non-Isolated DC/DC Converters 0.75V uPOL Power Module

Download FS1406-0750-AS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

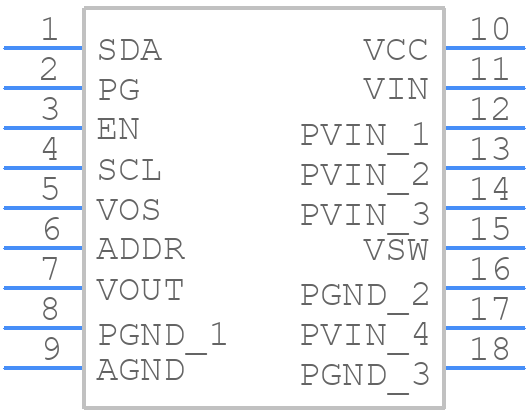

Symbol
FS1406-0750-AS - TDK - PCB symbol
click to zoom
PCB Footprints
FS1406-0750-AS - TDK PCB footprint - Other - Other - FS140X
click to zoom
3D Models
FS1406-0750-AS - TDK - 3D model - Other - FS140X
click to zoom

FS1406-0750-AS Details

  • Manufacturer Part Number:

    FS1406-0750-AS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • Additional Feature:

    INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XBCC-N17

  • Length:

    3.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    2.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    0.75 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Equivalence Code:

    LCC17,.13SQ,(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    3.3 mm

FS1406-0750-AS Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The FS1406-0750-AS is designed to provide excellent high-frequency noise suppression and EMI filtering. The component's internal structure and materials are optimized to absorb and dissipate high-frequency energy, making it suitable for use in noisy environments.
  • While the datasheet specifies a rated temperature range, it's essential to note that the component can operate safely up to 125°C, but with derated performance. It's crucial to consider the application's temperature profile and potential thermal stresses when designing with this component.
  • Yes, the FS1406-0750-AS is designed and manufactured to meet the requirements of high-reliability and safety-critical applications. TDK provides additional documentation and support for these applications, including failure rate data and compliance with relevant industry standards.
  • The FS1406-0750-AS is designed to withstand high-voltage and surge conditions, but it's essential to consider the component's voltage rating and surge withstand capability when designing for these conditions. TDK provides additional information on the component's voltage rating and surge behavior in their application notes and technical support resources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS1406-0750-AS Overview

Use the download button to access the FS1406-0750-AS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS140, or try a keyword search, such as Switching Regulator or Controllers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
