INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
Length:
3.3 mm
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.1 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm
FS1406-1100-AL Frequently Asked Questions (FAQs)
TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The FS1406-1100-AL uses a ferrite core material, which provides a good balance between inductance, DC resistance, and cost. Ferrite cores are suitable for most general-purpose applications, but may not be suitable for high-frequency or high-temperature applications. Engineers should consider the specific requirements of their design when selecting an inductor.
While the datasheet specifies a rated temperature range of -40°C to +125°C, the maximum operating temperature range may be limited by the specific application and environmental conditions. Engineers should consider the inductor's temperature coefficient, self-heating, and potential thermal runaway when designing their system.
The SRF of the FS1406-1100-AL is not explicitly stated in the datasheet, but it can be estimated based on the inductor's inductance and parasitic capacitance. Engineers should be aware that the SRF can affect the inductor's impedance and performance at high frequencies, and may need to consider this when designing their system.
TDK provides guidelines for storage and handling of their inductors, including recommendations for moisture sensitivity, electrostatic discharge (ESD) protection, and mechanical stress. Engineers should follow these guidelines to prevent damage and ensure the inductor's reliability and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1406-1100-AL Overview

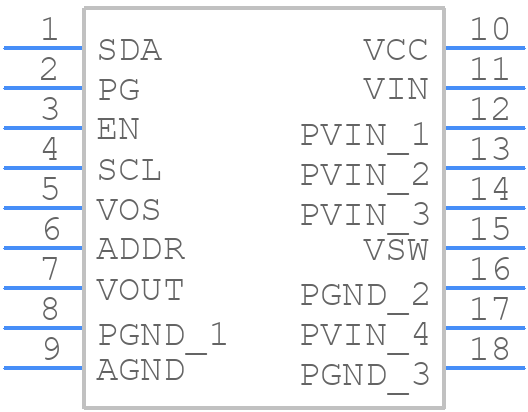

Use the download button to access the FS1406-1100-AL schematic symbol, PCB footprint, and 3D model.
