INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
JESD-609 Code:
e4
Length:
3.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.1 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm
FS1406-1100-AS Frequently Asked Questions (FAQs)
TDK recommends a symmetrical layout with the component placed at the center of the PCB, and the input and output pins should be routed away from each other to minimize electromagnetic interference (EMI).
To ensure reliability, it is recommended to derate the component's power handling according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management, such as using a heat sink or thermal interface material, to keep the component within its recommended operating temperature range.
TDK recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a ramp-up rate of 3°C/s (5.4°F/s) to minimize thermal shock.
Yes, the FS1406-1100-AS is designed to withstand vibrations up to 10G (98 m/s²) according to IEC 60068-2-6. However, it is recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent movement during vibration.
To troubleshoot issues, check for proper PCB layout, soldering, and component orientation. Verify that the input and output voltages are within the recommended range, and check for signs of overheating or physical damage. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1406-1100-AS Overview

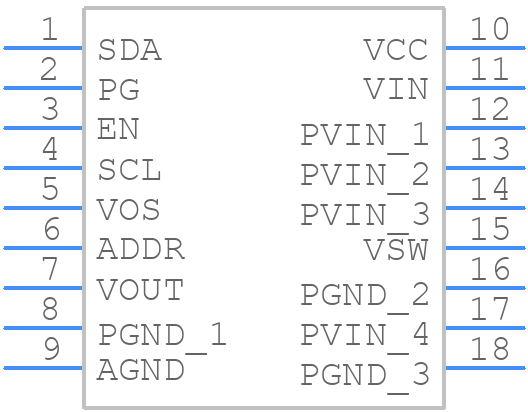

Use the download button to access the FS1406-1100-AS schematic symbol, PCB footprint, and 3D model.
