INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
Length:
3.3 mm
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.2 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm
FS1406-1200-AL Frequently Asked Questions (FAQs)
TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The FS1406-1200-AL is rated for operation from -40°C to +125°C. Operating the inductor outside this range can affect its performance, reliability, and lifespan. Elevated temperatures can cause the inductor's core to saturate, reducing its inductance and increasing its DC resistance.
The maximum allowable voltage across the FS1406-1200-AL is not explicitly stated in the datasheet. However, as a general rule, the voltage across the inductor should not exceed the rated current multiplied by the DC resistance. Exceeding this voltage can cause the inductor to saturate, leading to reduced performance and potentially damaging the component.
The SRF of the FS1406-1200-AL is not explicitly stated in the datasheet. However, it's essential to consider the SRF when designing high-frequency circuits. Operating the inductor near its SRF can cause it to resonate, leading to reduced performance, increased losses, and potential circuit instability.
TDK recommends storing the FS1406-1200-AL in a dry, cool place, away from direct sunlight and moisture. Handling the inductor by its body or terminals can cause damage; it's recommended to handle the component by its packaging or use a vacuum pick-up tool to prevent mechanical stress and electrostatic discharge (ESD).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1406-1200-AL Overview

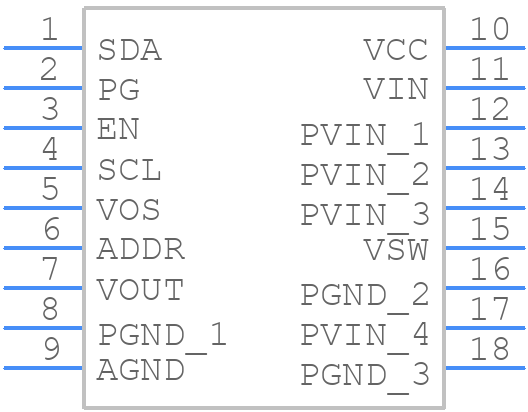

Use the download button to access the FS1406-1200-AL schematic symbol, PCB footprint, and 3D model.
