INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
JESD-609 Code:
e4
Length:
3.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.2 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm
FS1406-1200-AS Frequently Asked Questions (FAQs)
TDK recommends a symmetrical layout with the component placed at the center of the PCB, and the input and output pins should be routed away from each other to minimize electromagnetic interference (EMI).
To ensure reliability, it is recommended to derate the component's power rating according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management, such as using a heat sink or thermal interface material, to keep the component within its recommended operating temperature range.
TDK recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a preheat temperature of 150°C (302°F) to 180°C (356°F) for 60 seconds to 120 seconds.
The FS1406-1200-AS is not hermetically sealed, so it is not recommended for use in applications with high humidity or moisture. If used in such environments, the component may be susceptible to moisture ingress, which can affect its performance and reliability.
Store the FS1406-1200-AS in its original packaging or in a dry, clean environment with a relative humidity of 60% or less. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical connections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1406-1200-AS Overview

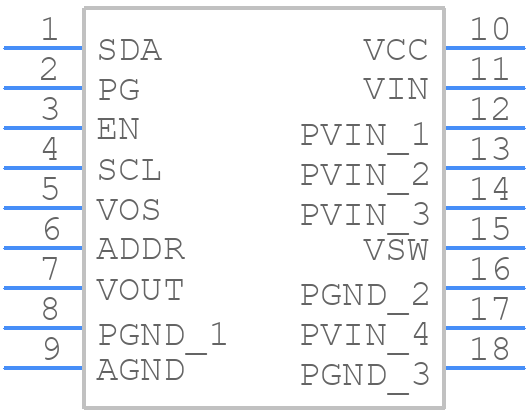

Use the download button to access the FS1406-1200-AS schematic symbol, PCB footprint, and 3D model.
