FS1406-1800-AL footprint, schematic symbol and 3D model by TDK

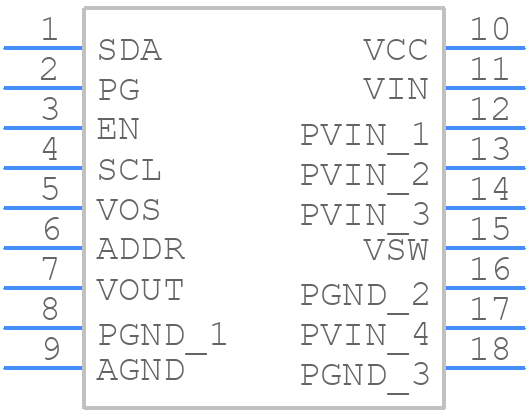

Symbol

click to zoom

PCB Footprints

FS1406-1800-AL - TDK PCB footprint - Other - Other - FS140X

click to zoom

3D Models

FS1406-1800-AL - TDK - 3D model - Other - FS140X

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS1406-1800-AL
Part Number FS1406-1800-AL
Manufacturer TDK
Pin Count 18
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - FS140X
Released Date Jan 13, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS1406-1800-AL Details

Manufacturer Part Number:
FS1406-1800-AL
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
10 Weeks
Manufacturer:
TDK Corporation
Additional Feature:
INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
Length:
3.3 mm
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.8 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm

FS1406-1800-AL Frequently Asked Questions (FAQs)

TDK recommends a symmetrical layout with the ferrite bead centered on the PCB, and the input and output lines routed away from each other to minimize electromagnetic interference (EMI).
The FS1406-1800-AL is designed to operate effectively up to 1 GHz, with impedance characteristics that help to suppress high-frequency noise and EMI.
The maximum current rating for the FS1406-1800-AL is 1.5 A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
Yes, the FS1406-1800-AL is rated for operation up to 125°C, making it suitable for high-temperature applications, but the impedance characteristics may vary with temperature.
The FS1406-1800-AL is designed to minimize signal attenuation and distortion, and its impedance characteristics help to preserve signal integrity in high-speed applications.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FS1406-1800-AL Overview

Use the download button to access the FS1406-1800-AL schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS140, or try a keyword search, such as Switching Regulator or Controllers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
