INPUT VOLTAGE RANGE FOR SINGLE SUPPLY IS 4.5 TO 16 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XBCC-N17
Length:
3.3 mm
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
2.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
1.8 V
Package Body Material:
UNSPECIFIED
Package Code:
BCC
Package Equivalence Code:
LCC17,.13SQ,(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Seated Height-Max:
1.62 mm
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
3.3 mm
FS1406-1800-AS Frequently Asked Questions (FAQs)
TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
To ensure reliability in high-temperature applications, it's essential to follow TDK's recommended derating guidelines for temperature and power handling. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, and avoid exceeding the maximum operating temperature of 125°C.
The maximum allowable voltage stress for the FS1406-1800-AS is 1.5 times the rated voltage (1800V) for a duration of 1 minute. However, it's recommended to follow the derating guidelines for voltage and temperature to ensure reliable operation.
Yes, the FS1406-1800-AS can be used in a parallel configuration to increase power handling. However, it's essential to ensure that the components are properly matched, and the PCB layout is designed to minimize parasitic inductance and capacitance. Additionally, follow TDK's guidelines for parallel operation to ensure reliable performance.
The typical lead time for the FS1406-1800-AS may vary depending on the region and availability. It's recommended to check with TDK's authorized distributors or representatives for the latest lead time information. If there are any lead time issues, TDK may offer alternative components with similar specifications, such as the FS1406-1800-AS-TR or FS1406-1800-AS-H.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1406-1800-AS Overview

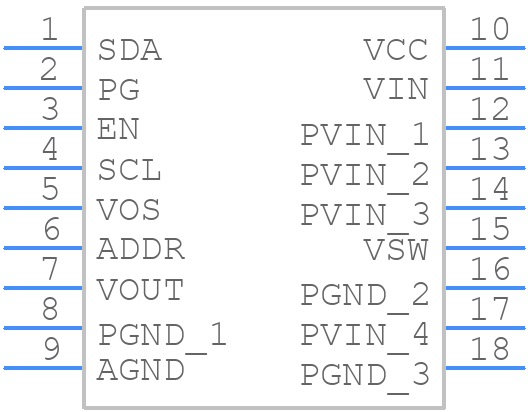

Use the download button to access the FS1406-1800-AS schematic symbol, PCB footprint, and 3D model.
