TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The FS1412-0600-AL is rated for operation from -40°C to +125°C. Operating the inductor outside this range can affect its performance, reliability, and lifespan. It's crucial to consider the temperature range in your design to ensure the inductor meets your requirements.
The maximum allowable DC current for the FS1412-0600-AL is 6A. Exceeding this current can cause the inductor to overheat, leading to reduced performance, increased losses, and potentially even failure. It's essential to ensure the DC current in your design is within the specified limit.
The FS1412-0600-AL uses a ferrite core material, which provides a good balance between inductance, DC resistance, and EMI performance. The ferrite core helps to minimize EMI and reduce radiation, making it suitable for high-frequency applications.
The SRF of the FS1412-0600-AL is not explicitly stated in the datasheet, but it can be estimated based on the inductor's design and construction. The SRF is typically above the operating frequency range, but it's essential to consider it in your design to avoid resonance and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1412-0600-AL Overview

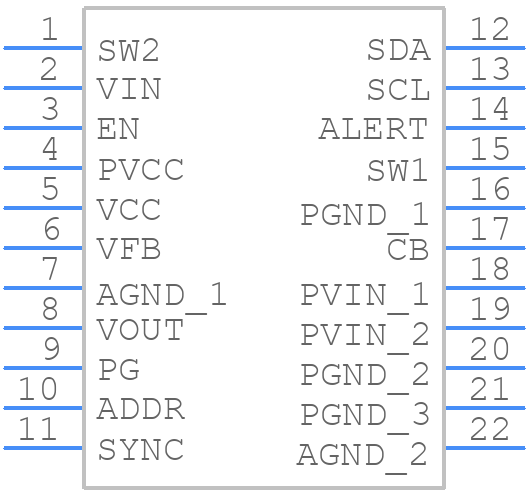

Use the download button to access the FS1412-0600-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS141,
or try a keyword search, such as Switching Regulator or Controllers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
