The recommended land pattern for FS1412-0600-AS can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
FS1412-0600-AS is an ESD-sensitive device. To handle it safely, use an ESD wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the component's pins or handling it in a way that could generate static electricity.
The thermal resistance of FS1412-0600-AS is not explicitly stated in the datasheet. However, it can be estimated based on the package dimensions and the thermal conductivity of the materials used. A rough estimate is around 10-15°C/W. For more accurate calculations, consult with a thermal expert or use thermal simulation software.
While FS1412-0600-AS is a robust component, it's essential to evaluate its suitability for high-vibration environments. TDK Corporation provides vibration testing data for some of their components, but it's not explicitly stated for FS1412-0600-AS. Consult with a TDK Corporation representative or perform your own vibration testing to ensure the component's reliability in your specific application.
Store FS1412-0600-AS components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid exposing them to chemicals, cleaning solvents, or other contaminants. Follow the storage guidelines provided by TDK Corporation or the IPC-J-STD-033 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS1412-0600-AS Overview

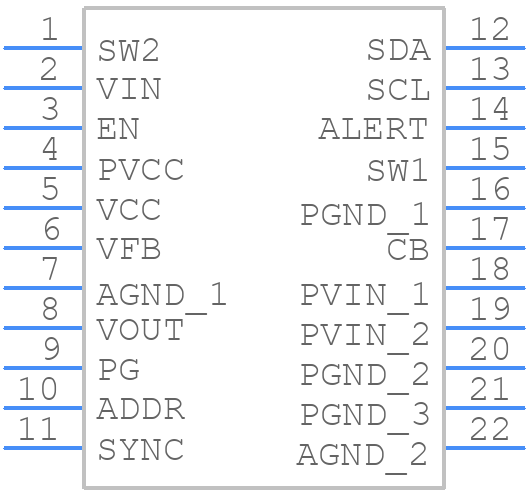

Use the download button to access the FS1412-0600-AS schematic symbol, PCB footprint, and 3D model.
