FS16-150-C2 footprint, schematic symbol and 3D model by Triad Magnetics

Symbol

click to zoom

PCB Footprints

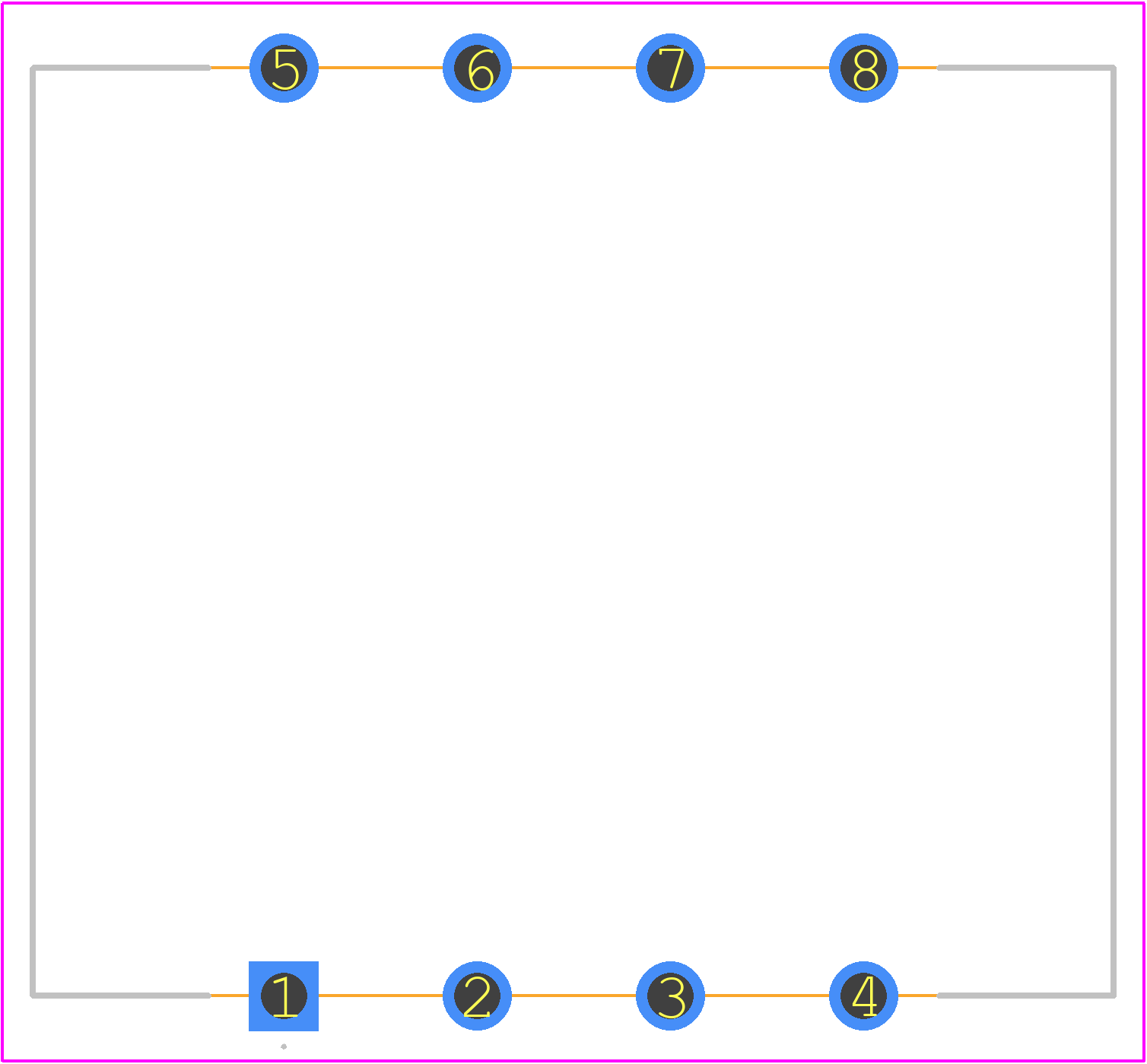

FS16-150-C2 - Triad Magnetics PCB footprint - Other - Other - FS16-150-C2-1

click to zoom

3D Models

FS16-150-C2 - Triad Magnetics - 3D model - Other - FS16-150-C2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS16-150-C2
Part Number FS16-150-C2
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FS16-150-C2-1
Released Date Nov 25, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS16-150-C2 Details

Manufacturer Part Number:
FS16-150-C2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
30.16 mm
Input Voltage-Nom:
230 V
Isolation Voltage:
1500 V
Length:
34.93 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Output Current 1:
0.3 A
Output Voltage 1:
8 V
Output Voltage 2:
8 V
Primary Rating:
DUAL 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
2.5 VA
Width:
28.58 mm

FS16-150-C2 Frequently Asked Questions (FAQs)

The recommended operating frequency range for the FS16-150-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
Yes, the FS16-150-C2 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
The maximum ambient temperature rating for the FS16-150-C2 is 130°C, but derating may be required for high-temperature applications.
Yes, the FS16-150-C2 meets the requirements of UL 1561 and CE safety standards, but the final product must still meet the relevant safety standards.
The recommended wire size for the primary and secondary windings depends on the specific application, but a minimum of 18 AWG is recommended for the primary and 20 AWG for the secondary.

Trust Checks

Community Provided

System Verified

Community Approved

FS16-150-C2 Overview

Use the download button to access the FS16-150-C2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS16-, or try a keyword search, such as Power/Mains Transformers
