FS16-2250-C2 Frequently Asked Questions (FAQs)

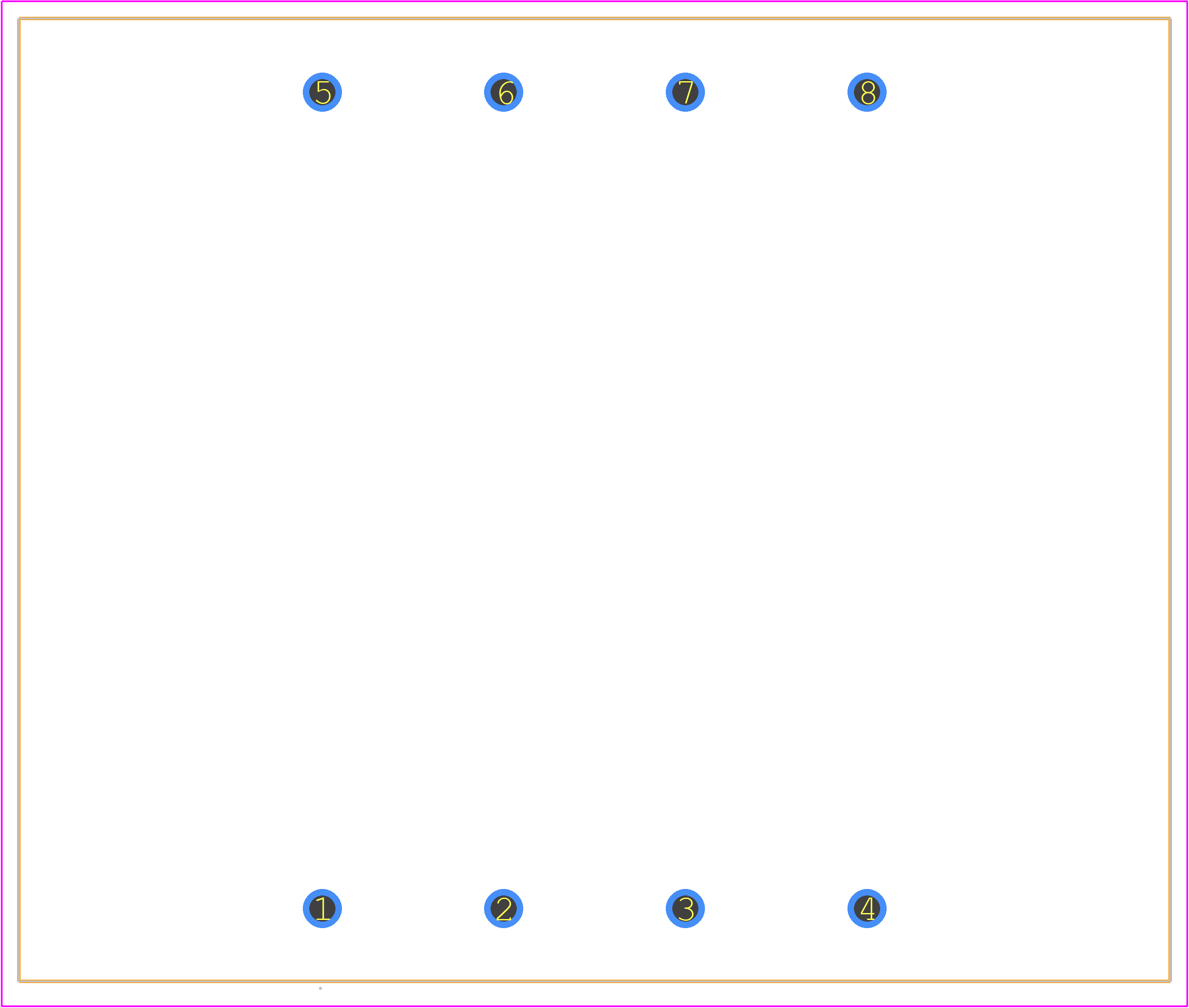

• What is the recommended PCB layout and spacing for optimal performance?
  Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) of clearance around the transformer to ensure proper airflow and heat dissipation. A symmetrical PCB layout with the transformer centered and traces routed away from the transformer is also recommended to minimize electromagnetic interference (EMI).
• Can I use this transformer in a high-voltage application?
  The FS16-2250-C2 is rated for 2250Vrms primary to secondary isolation, but it's essential to ensure that the transformer is used within its specified voltage ratings and that proper safety precautions are taken to avoid electrical shock or other hazards.
• How do I ensure reliable operation in high-temperature environments?
  Triad Magnetics recommends derating the transformer's power rating by 1.5% for every degree above 40°C (104°F) to ensure reliable operation in high-temperature environments. Additionally, ensuring good airflow and using a thermally conductive interface material can help to dissipate heat effectively.
• What is the recommended wire gauge and insulation for the primary and secondary windings?
  Triad Magnetics recommends using a minimum of 18 AWG wire for the primary winding and 20 AWG wire for the secondary winding, with a minimum insulation rating of 150°C (302°F) to ensure reliable operation and meet safety standards.
• Can I use this transformer in a resonant converter topology?
  The FS16-2250-C2 is designed for use in non-resonant converter topologies, but it can be used in resonant converter topologies with proper design and simulation to ensure that the transformer's characteristics are compatible with the resonant circuit.
