FS16-400-C2 - Triad Magnetics

Description: PCB Transformer, Split Bobbin, 115V, 230V, 2 x 8V, 6 VA, 50Hz / 60Hz

Download FS16-400-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

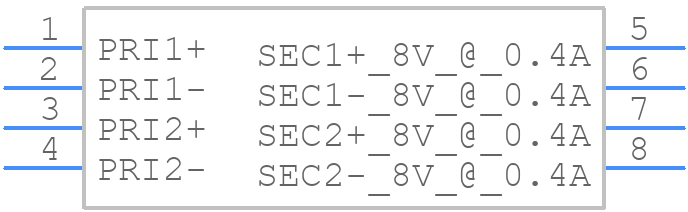

FS16-400-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints
FS16-400-C2 - Triad Magnetics PCB footprint - Other - Other - FS16-400-C2-3
click to zoom
3D Models
FS16-400-C2 - Triad Magnetics - 3D model - Other - FS16-400-C2-3
click to zoom

FS16-400-C2 Details

  • Manufacturer Part Number:

    FS16-400-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.8 A

  • Output Voltage 1:

    8 V

  • Output Voltage 2:

    8 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

FS16-400-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS16-400-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the FS16-400-C2 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the FS16-400-C2 is 130°C, but derating may be required for high-temperature applications.
  • Yes, the FS16-400-C2 meets the requirements of UL 1561 and CE safety standards, but the final product must still meet the relevant safety standards.
  • Yes, the FS16-400-C2 can be used in a push-pull converter topology, but the designer should ensure that the transformer is properly designed and tested for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS16-400-C2 Overview

Use the download button to access the FS16-400-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS16-, or try a keyword search, such as Power/Mains Transformers

Parts related to FS16-400-C2

Showing 0 results
