FS16-400 - Triad Magnetics

Description: Power Transformers POWER XFMR 16.0Vct@0.400A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS16-400

Download FS16-400 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

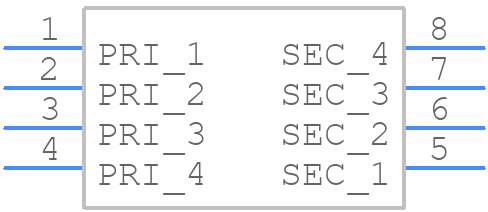

FS16-400 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

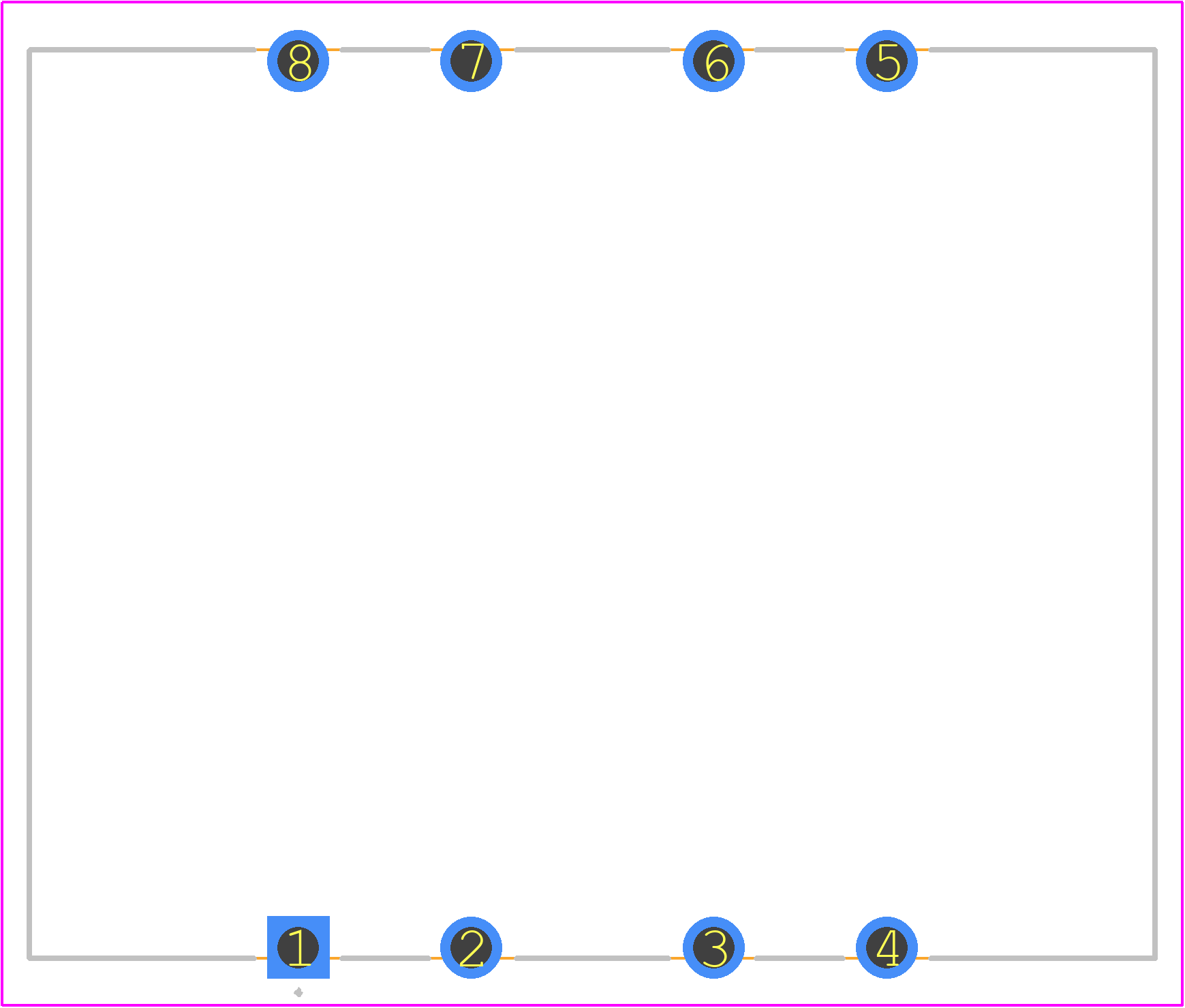

FS16-400 - Triad Magnetics PCB footprint - Other - Other - FS16-400-2
click to zoom
3D Models
FS16-400 - Triad Magnetics - 3D model - Other - FS16-400-2
click to zoom

FS16-400 Details

  • Manufacturer Part Number:

    FS16-400

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.8 A

  • Output Voltage 1:

    8 V

  • Output Voltage 2:

    8 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

FS16-400 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the FS16-400 is 130°C, with a maximum storage temperature of 150°C.
  • Yes, the FS16-400 is suitable for use in switching power supplies, but the designer should ensure that the transformer is properly designed and tested to handle the high-frequency switching currents and voltages.
  • The recommended wire size for the primary and secondary windings depends on the specific application and current requirements. As a general guideline, a minimum of 18 AWG wire is recommended for the primary winding, and 20 AWG wire for the secondary winding.
  • To ensure proper insulation and creepage distance, the designer should follow the guidelines outlined in the relevant safety standards, such as UL 506 or IEC 61558. A minimum creepage distance of 2.5 mm is recommended between the primary and secondary windings.
  • Yes, the FS16-400 can be used in a Class II (double-insulated) application, but the designer must ensure that the transformer is properly designed and tested to meet the relevant safety standards, such as UL 1310 or IEC 61558.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS16-400 Overview

Use the download button to access the FS16-400 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS16-, or try a keyword search, such as Power/Mains Transformers
