Part Image

FS1B105ZF - Yageo Group

Description: FS, Supercapacitors, Radial Pin, 1 F, -20/+80%, 12 VDC, 70°C, -25°C, 70°C, Pin Leads, 3.6, 40 g, 28.5mm, 38mm, Lead Spacing = 10.16mm, 50

Download FS1B105ZF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

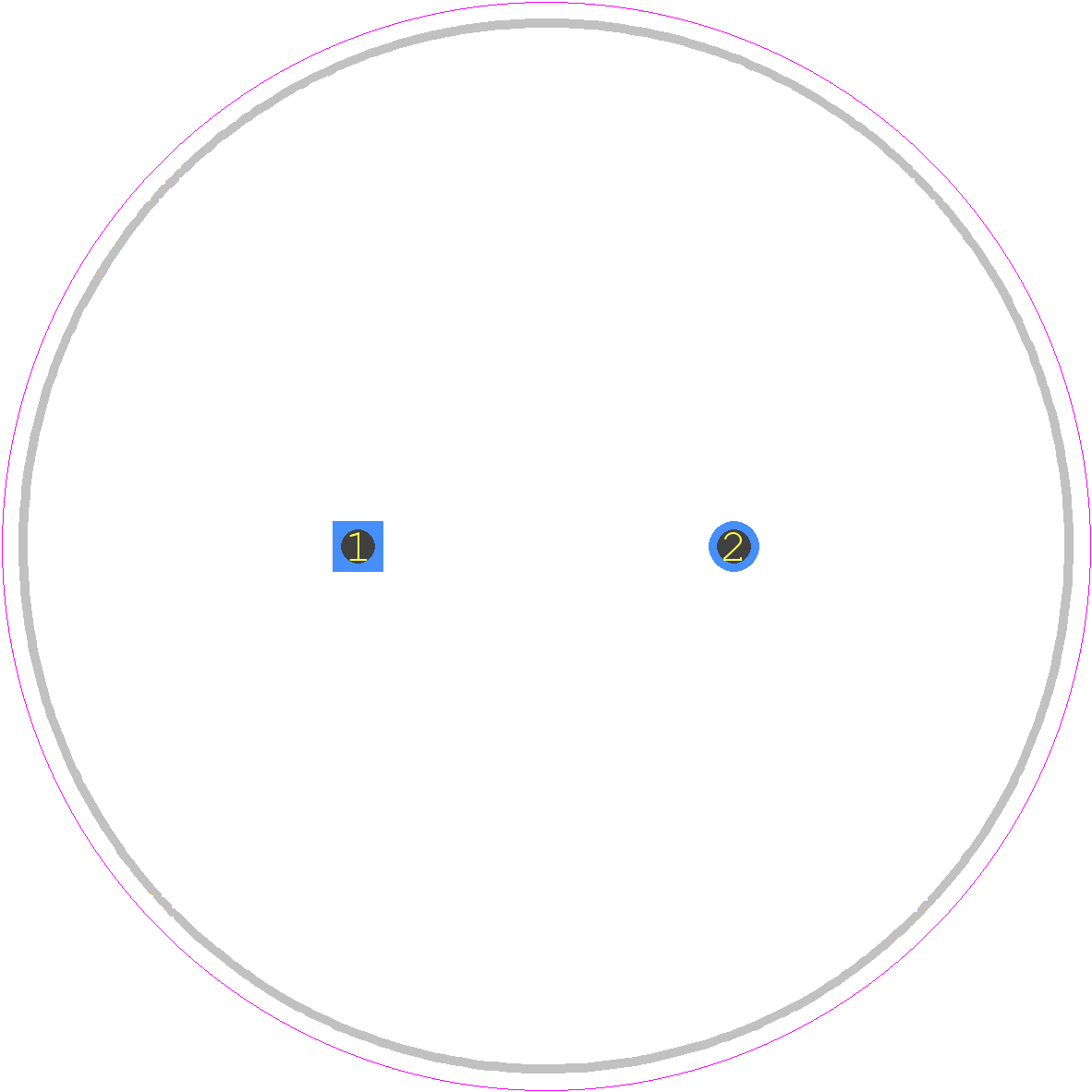

FS1B105ZF - Yageo Group PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - FS1B105ZF
click to zoom
3D Models
FS1B105ZF - Yageo Group  - 3D model - Capacitor, Polarized Radial Diameter - FS1B105ZF
click to zoom

FS1B105ZF Details

  • Manufacturer Part Number:

    FS1B105ZF

  • Manufacturer:

    YAGEO Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS1B105ZF Overview

Use the download button to access the FS1B105ZF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS1B1, or try a keyword search, such as Special Capacitors
