FS20-12 - XP POWER

Description: Isolated DC/DC Converters SINGLE O/P, DC-HV DC PCB MOUNT, 10W,+/-2kV

Download FS20-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

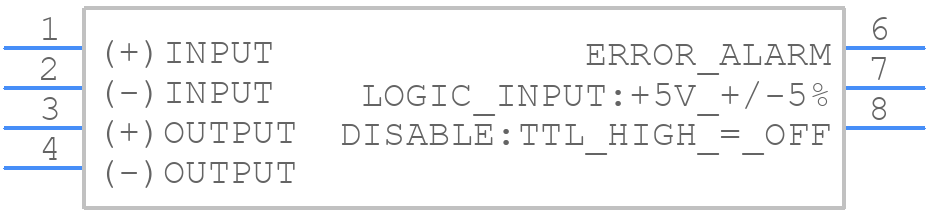

Symbol
FS20-12 - XP POWER - PCB symbol
click to zoom

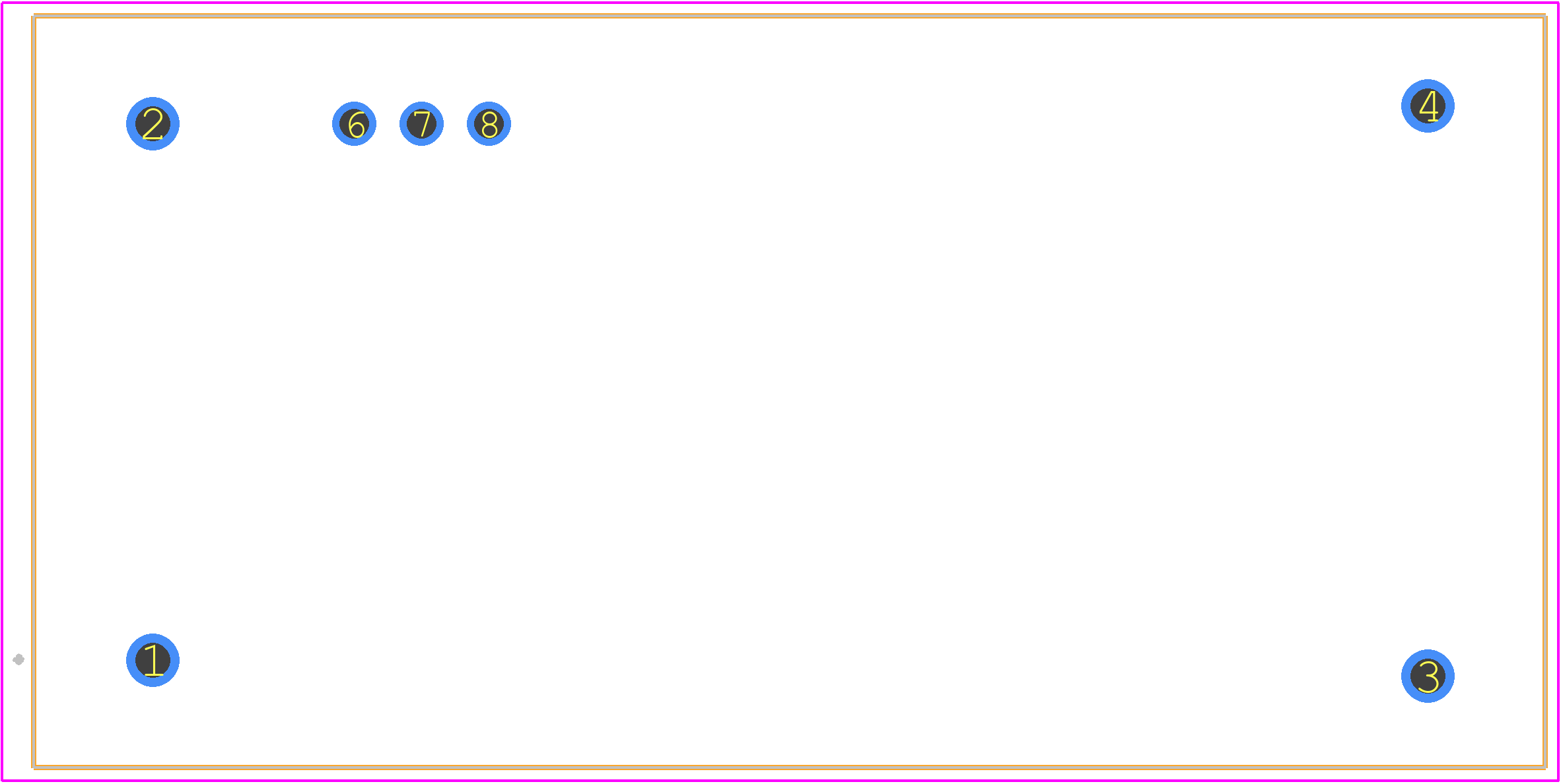

PCB Footprints
FS20-12 - XP POWER PCB footprint - Other - Other - FS20-12-2
click to zoom
3D Models
FS20-12 - XP POWER - 3D model - Other - FS20-12-2
click to zoom

FS20-12 Details

  • Manufacturer Part Number:

    FS20-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    0.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XXMA-X7

  • Length:

    57.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.005 A

  • Output Voltage-Max:

    2000 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    CURRENT LIMIT; OVER VOLTAGE; THERMAL; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    17.675 Vrms

  • Seated Height-Max:

    13.21 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    YES

  • Width:

    28.5 mm

FS20-12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the FS20-12 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application engineers for specific guidance.
  • The FS20-12 is rated for operation up to 80°C ambient temperature, but derating may be required above 60°C. It's essential to consult the datasheet and XP Power's application notes for thermal derating guidelines.
  • The FS20-12 is designed to meet the vibration requirements of IEC 60068-2-6, but it's recommended to consult with XP Power's application engineers to ensure the product meets the specific vibration requirements of your application.
  • The FS20-12 has a conformal coating to protect against humidity, but it's not designed for immersion in water. If your application requires operation in a humid or wet environment, consult with XP Power's application engineers to discuss potential customization options.
  • The MTBF of the FS20-12 is typically in the range of 1-2 million hours, depending on the operating conditions and environment. Consult XP Power's reliability data and application notes for more information.
