FS20-120-C2 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Class 2/3, 2.5 V A, 10/20VDC (Nominal Secondary) Output, 20VDC CT at 0.12A Secondary in Series, 10VDC at 0.24A Secondary in Parallel, 1.62 Inch Length, 0.88 Inch Width, Center Tap

Download FS20-120-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS20-120-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

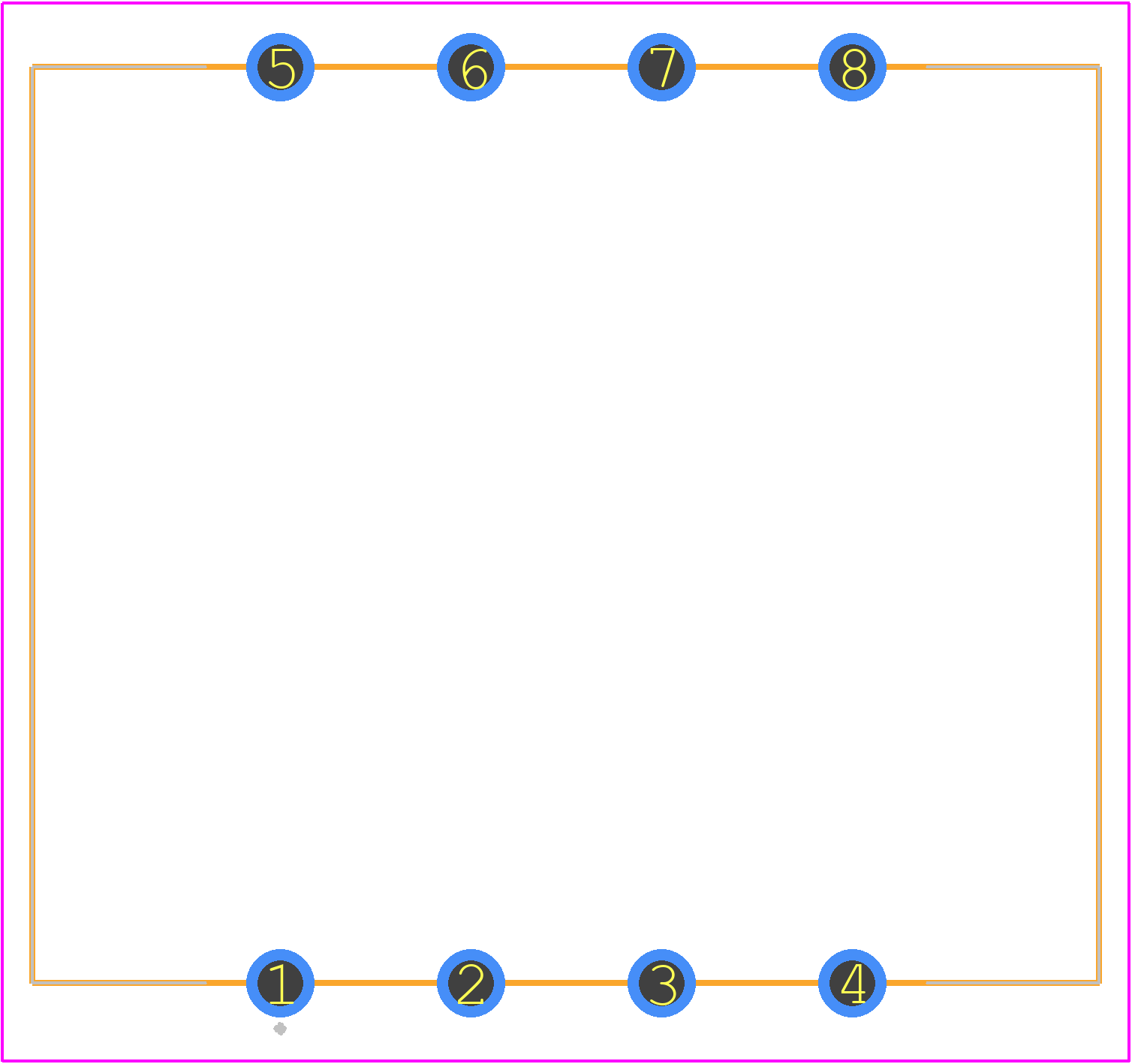

FS20-120-C2 - Triad Magnetics PCB footprint - Other - Other - FS20-120-C2
click to zoom
3D Models
FS20-120-C2 - Triad Magnetics - 3D model - Other - FS20-120-C2
click to zoom

FS20-120-C2 Details

  • Manufacturer Part Number:

    FS20-120-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.24 A

  • Output Voltage 1:

    10 V

  • Output Voltage 2:

    10 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS20-120-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS20-120-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the FS20-120-C2 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the FS20-120-C2 is 130°C, but derating may be required for high-temperature applications.
  • Yes, the FS20-120-C2 meets the requirements of UL 1561 and CE safety standards, but the final product must still meet the relevant safety standards.
  • Yes, the FS20-120-C2 can be used in high-reliability or military applications, but the designer should ensure that the transformer meets the specific requirements of the application, including environmental and performance requirements.
