FS20-600 - Triad Magnetics

Description: Power Transformers POWER XFMR 20.0Vct@0.600A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS20-600

Download FS20-600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS20-600 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

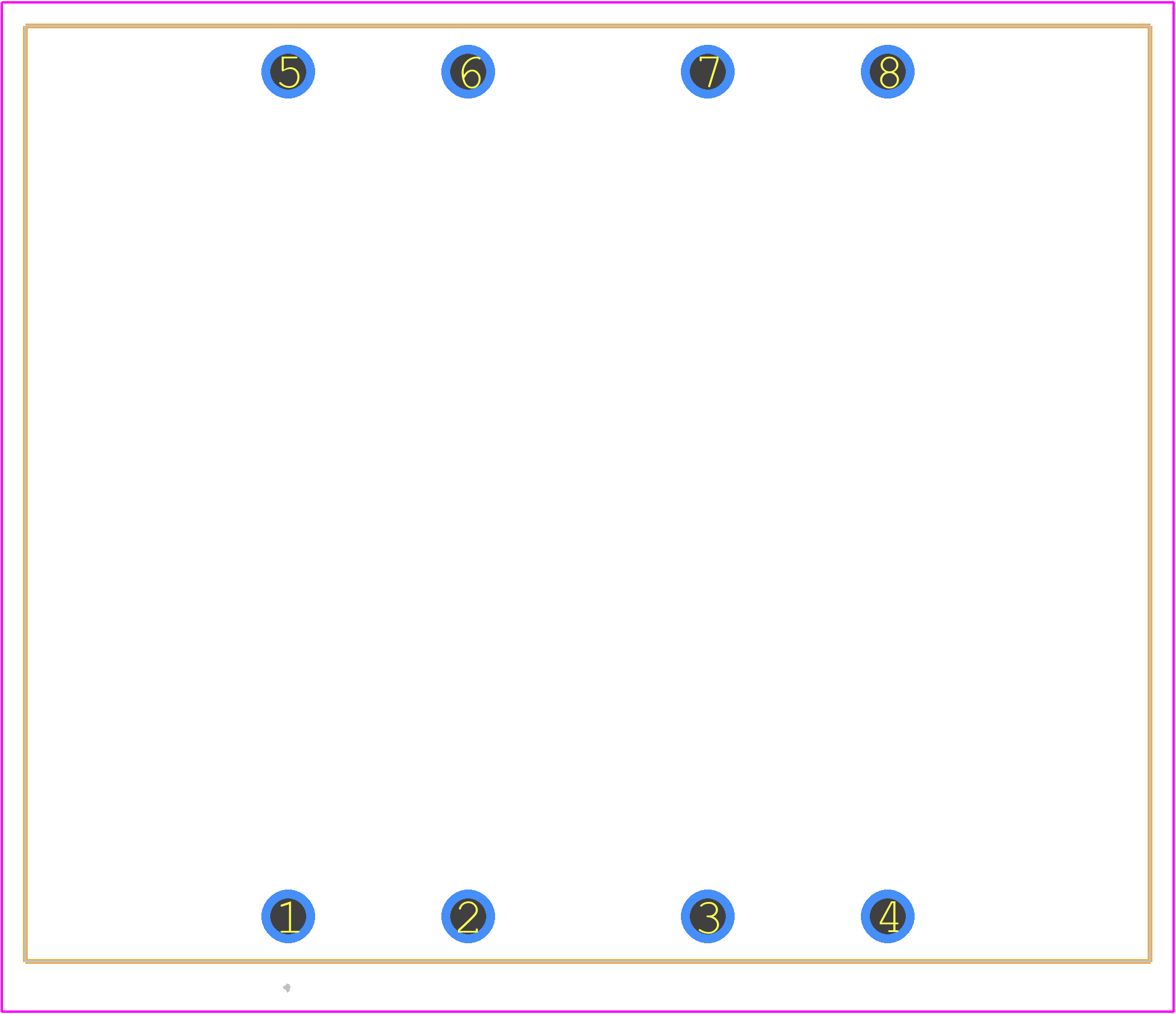

FS20-600 - Triad Magnetics PCB footprint - Other - Other - FS20-600-1
click to zoom
3D Models
FS20-600 - Triad Magnetics - 3D model - Other - FS20-600-1
click to zoom

FS20-600 Details

  • Manufacturer Part Number:

    FS20-600

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    36.51 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    47.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.2 A

  • Output Voltage 1:

    10 V

  • Output Voltage 2:

    10 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    39.69 mm

FS20-600 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS20-600 is 50-400 Hz, but it can operate up to 1 kHz with reduced performance.
  • Yes, the FS20-600 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the FS20-600 is 130°C, but derating may be required for high-temperature applications.
  • Yes, the FS20-600 meets the requirements of UL 1561 and IEC 61558 safety standards for transformers.
  • The recommended wire size for the primary and secondary windings depends on the specific application, but a minimum of 18 AWG is recommended for the primary and 20 AWG for the secondary.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS20-600 Overview

Use the download button to access the FS20-600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS20-, or try a keyword search, such as Power/Mains Transformers
