FS2050-0000-1500-G - TE Connectivity

Description: Electrical Characteristics: Supply Voltage 5 VDC | Full Scale Range 15 NEWTM | Other: Force Direction Compression | Accuracy ±1 PCTFS | Sensitivity Shift ±.05 PCTFS | Zero Shift in CTR ±.05 PCTFS | Product Type Features: Force Sensor Element Sensor Type OEM Compression Load Cells | Signal Characteristics: Output Signal 1 – 4 V | Usage Conditions: Operating Temperature Range -40 – 85 DEGC | Operating Temperature Range -40 – 185 DEGF |

Download FS2050-0000-1500-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

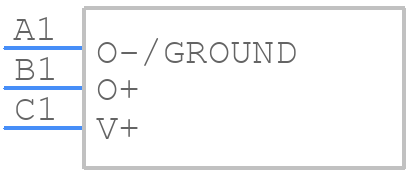

FS2050-0000-1500-G - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

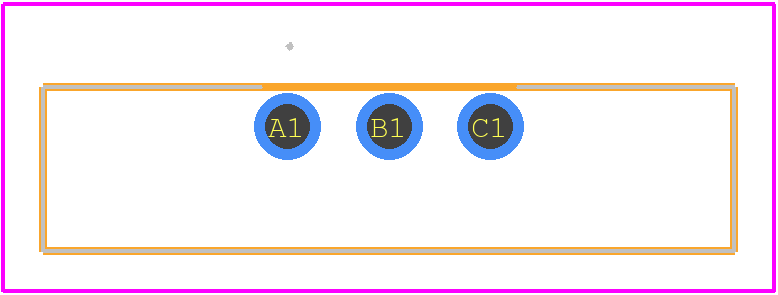

FS2050-0000-1500-G - TE Connectivity PCB footprint - Other - Other - FS2050-0000-1500-G-2
click to zoom
3D Models
FS2050-0000-1500-G - TE Connectivity - 3D model - Other - FS2050-0000-1500-G-2
click to zoom

FS2050-0000-1500-G Details

  • Manufacturer Part Number:

    FS2050-0000-1500-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TE Connectivity

  • Accuracy-Max (%):

    1%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    1-4V

  • Supply Voltage-Max:

    5 V

FS2050-0000-1500-G Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) for the M3 screws.
  • Yes, the FS2050-0000-1500-G is designed to withstand vibrations up to 10 G (10-2000 Hz) and can be used in high-vibration environments.
  • The maximum operating temperature range for the FS2050-0000-1500-G is -40°C to 125°C (-40°F to 257°F).
  • Yes, the FS2050-0000-1500-G is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The minimum bend radius for the cable when using the FS2050-0000-1500-G is 5 mm (0.2 in).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS2050-0000-1500-G Overview

Use the download button to access the FS2050-0000-1500-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS205, or try a keyword search, such as Other Sensors/Transducers
