FS22ABP footprint, schematic symbol and 3D model by NKK Switches

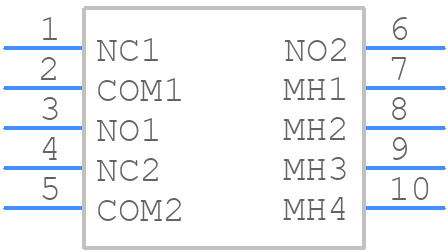

Symbol

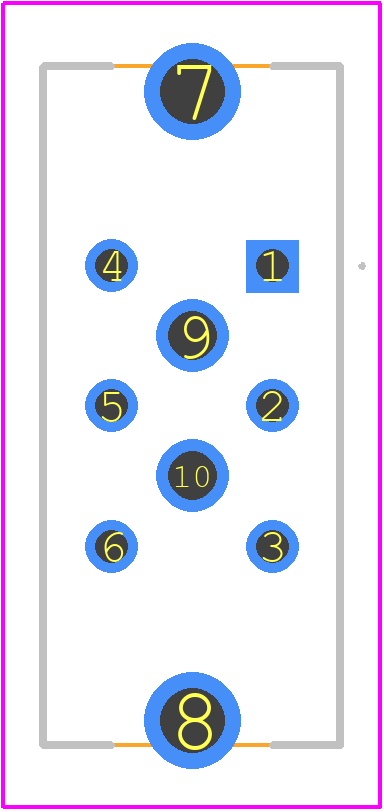

PCB Footprints

3D Models

FS22ABP Details

The recommended torque for mounting the FS22ABP switch is 0.5-1.5 N·m (4.4-13.3 in·lb).
Yes, the FS22ABP switch is designed to withstand vibrations up to 10-2000 Hz, 10G acceleration, and is suitable for use in high-vibration environments.
Yes, the FS22ABP switch has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor or harsh environments.
The operating temperature range of the FS22ABP switch is -20°C to 85°C (-4°F to 185°F).
Yes, the FS22ABP switch is compatible with PCB mounting, and it is recommended to use a PCB with a thickness of 1.6 mm or more.

Community Provided

System Verified

Community Approved

Use the download button to access the FS22ABP schematic symbol, PCB footprint, and 3D model.
