FS24-250-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 24 Vct @ 250 mA UL/cUL - Class 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS24-250-C2

Download FS24-250-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

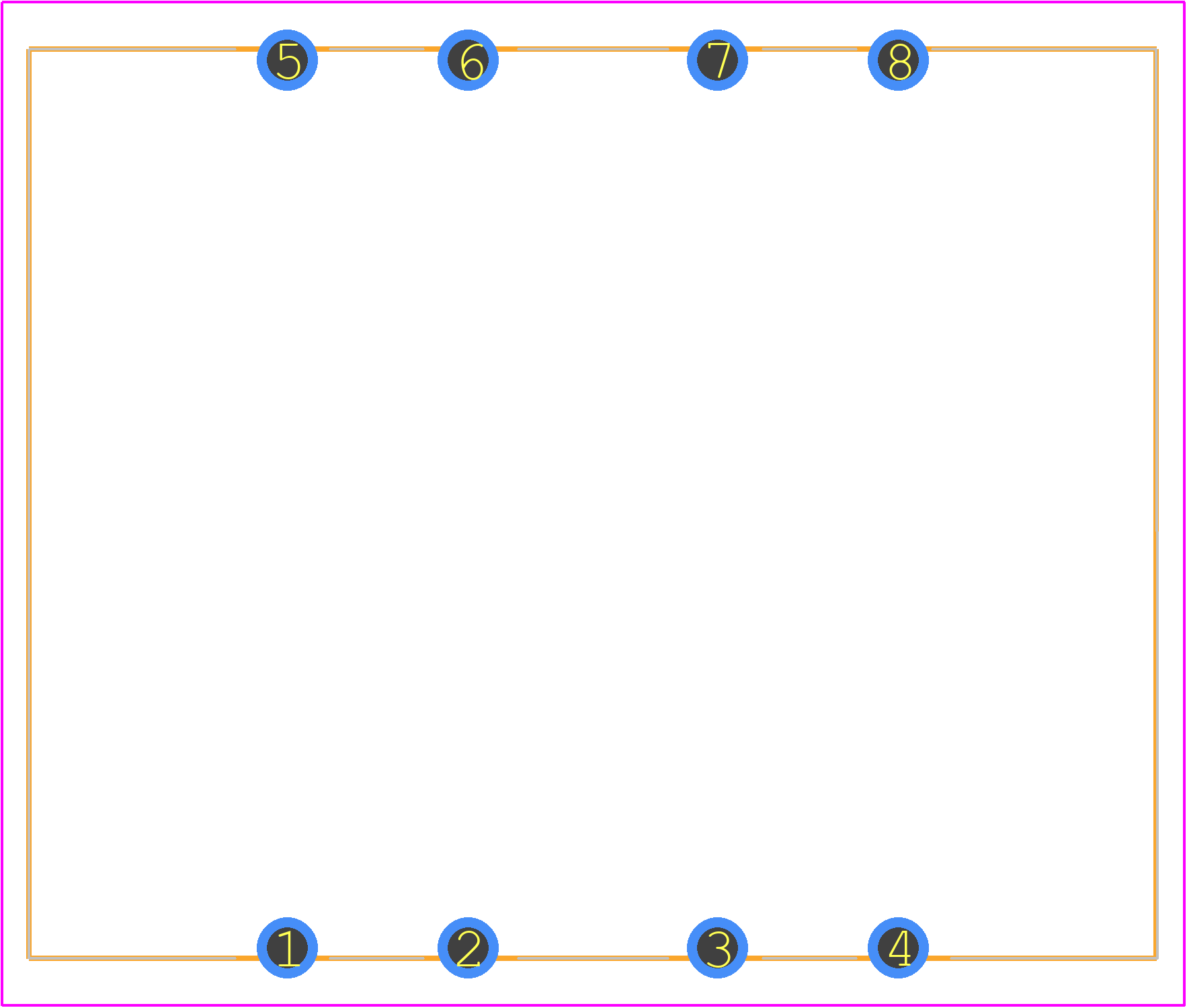

PCB Footprints
FS24-250-C2 - Triad Magnetics PCB footprint - Other - Other - FS24-250-C2-2
click to zoom
3D Models
FS24-250-C2 - Triad Magnetics  - 3D model - Other - FS24-250-C2-2
click to zoom

FS24-250-C2 Details

  • Manufacturer Part Number:

    FS24-250-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

FS24-250-C2 Frequently Asked Questions (FAQs)

  • Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) spacing between the transformer and other components, and a PCB layout that minimizes noise coupling and electromagnetic interference (EMI). A good layout practice is to keep the transformer away from high-frequency components and to use a ground plane to reduce noise.
  • To ensure reliable operation over the full temperature range of -40°C to 125°C, it's essential to follow proper storage, handling, and soldering procedures. Avoid exposing the transformer to mechanical stress, and ensure that the PCB is designed to accommodate the thermal expansion of the transformer.
  • Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and prevent premature failure.
  • The FS24-250-C2 transformer is designed for standard operating conditions. For high-humidity or high-altitude environments, Triad Magnetics recommends consulting their application notes and considering specialized designs or custom transformers that can withstand these conditions.
  • Triad Magnetics recommends using a suitable adhesive, such as a silicone-based adhesive, to secure the transformer to the PCB. Avoid using mechanical fasteners that can damage the transformer or compromise its electrical performance.
