FS24-500 - Triad Magnetics

Description: Power Transformers POWER XFMR 24.0Vct@0.500A UL/cUL 115/230V SPLIT PACK PCB MOUNT

Download FS24-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS24-500 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

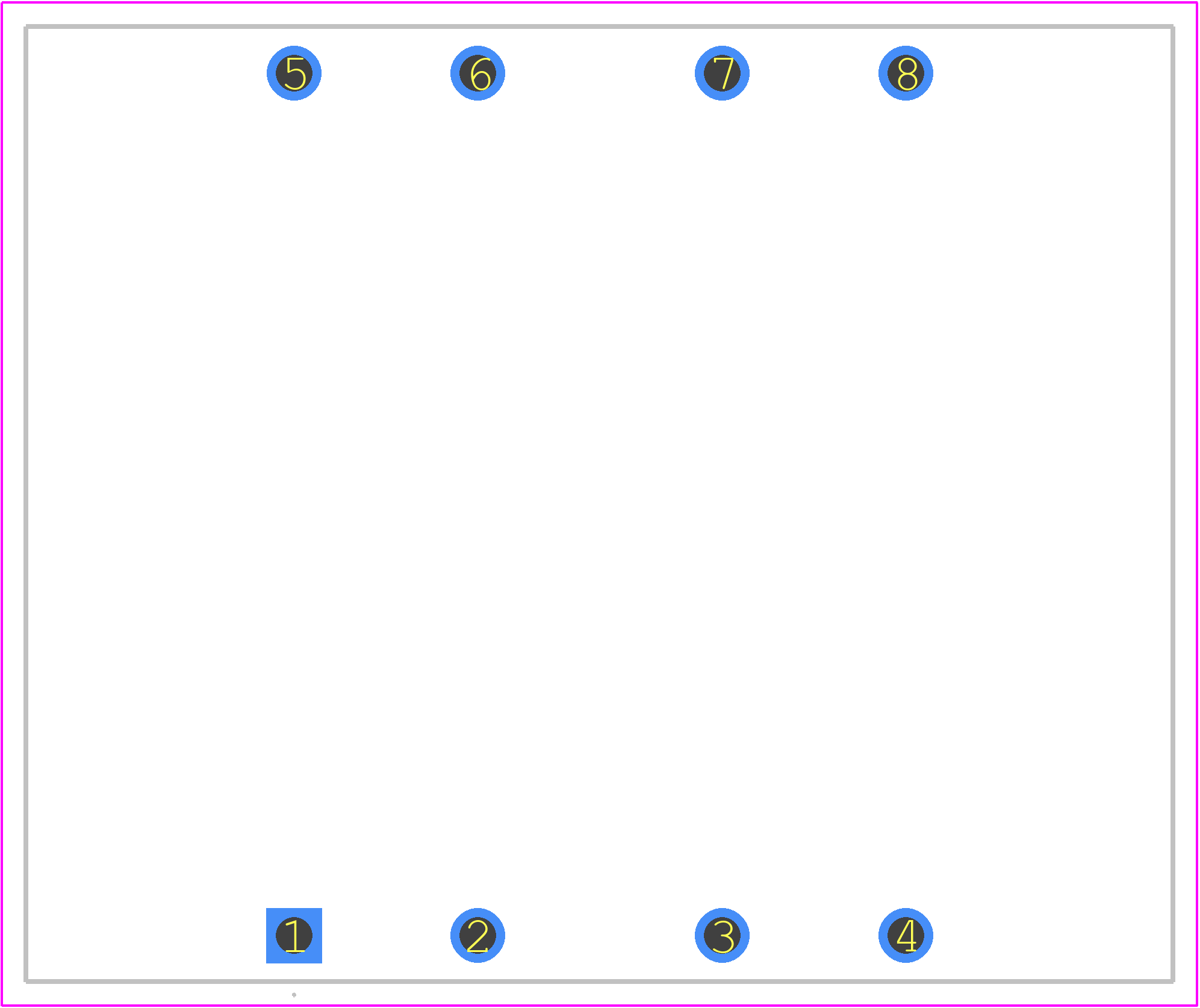

FS24-500 - Triad Magnetics PCB footprint - Other - Other - FS24-500-1
click to zoom
3D Models
FS24-500 - Triad Magnetics - 3D model - Other - FS24-500-1
click to zoom

FS24-500 Details

  • Manufacturer Part Number:

    FS24-500

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    36.51 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    47.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    39.69 mm

FS24-500 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the FS24-500 is 130°C, with a maximum storage temperature of 150°C.
  • Yes, the FS24-500 is designed and manufactured to meet the requirements of high-reliability applications, including military and aerospace industries.
  • The recommended PCB footprint for the FS24-500 is a rectangular pad with dimensions of 0.5 inches (12.7 mm) x 0.75 inches (19.05 mm), with a hole size of 0.125 inches (3.18 mm) for the mounting screw.
  • Yes, the FS24-500 is suitable for use in switching power supplies, including DC-DC converters and AC-DC converters, due to its high frequency capability and low core loss.
  • The recommended torque specification for the mounting screw is 5-7 in-lbs (0.56-0.79 Nm).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS24-500 Overview

Use the download button to access the FS24-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS24-, or try a keyword search, such as Power/Mains Transformers
