FS24-800-C2 footprint, schematic symbol and 3D model by Triad Magnetics

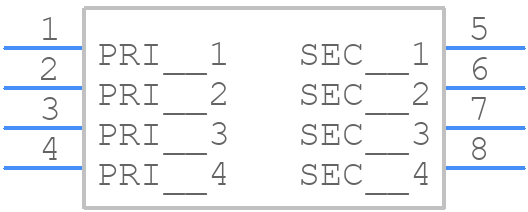

Symbol

click to zoom

PCB Footprints

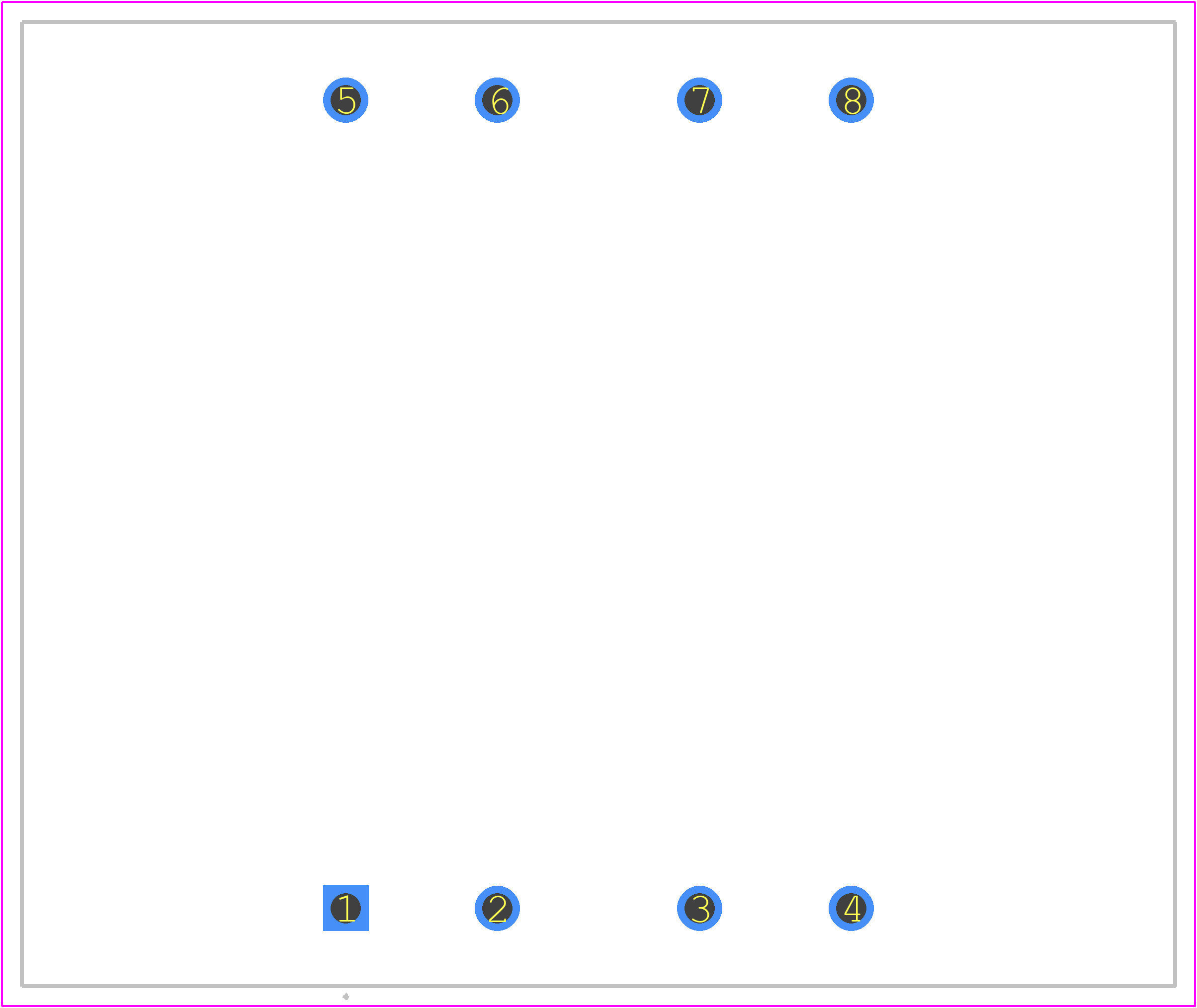

FS24-800-C2 - Triad Magnetics PCB footprint - Other - Other - FS24-800-C2-1

click to zoom

3D Models

FS24-800-C2 - Triad Magnetics - 3D model - Other - FS24-800-C2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS24-800-C2
Part Number FS24-800-C2
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FS24-800-C2-1
Released Date Nov 1, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS24-800-C2 Details

Manufacturer Part Number:
FS24-800-C2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
36.51 mm
Input Voltage-Nom:
230 V
Isolation Voltage:
1500 V
Length:
57.15 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Output Current 1:
1.6 A
Output Voltage 1:
12 V
Output Voltage 2:
12 V
Primary Rating:
DUAL 115V
Surface Mount:
NO
Terminal Finish:
NOT SPECIFIED
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
20 VA
Width:
47.63 mm

FS24-800-C2 Frequently Asked Questions (FAQs)

Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and keeping the primary and secondary windings as close together as possible to minimize leakage inductance.
Triad Magnetics recommends providing adequate airflow around the transformer, using a heat sink if necessary, and ensuring that the ambient temperature does not exceed 40°C (104°F).
The maximum voltage rating for the primary winding is 800VRMS, and for the secondary winding is 24VRMS. Exceeding these ratings may result in transformer failure.
Yes, the FS24-800-C2 is suitable for switching power supply applications, but Triad Magnetics recommends ensuring that the switching frequency does not exceed 100 kHz to avoid core saturation.
Triad Magnetics recommends a minimum creepage distance of 4.5 mm (0.177 in) between the primary and secondary windings to ensure electrical isolation.

Trust Checks

Community Provided

System Verified

Community Approved

FS24-800-C2 Overview

Use the download button to access the FS24-800-C2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS24-, or try a keyword search, such as Power/Mains Transformers
