FS28-040-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 28 Vct @ 40 mA UL/cUL - Class 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS28-040-C2

Download FS28-040-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS28-040-C2 - Triad Magnetics - PCB symbol
click to zoom

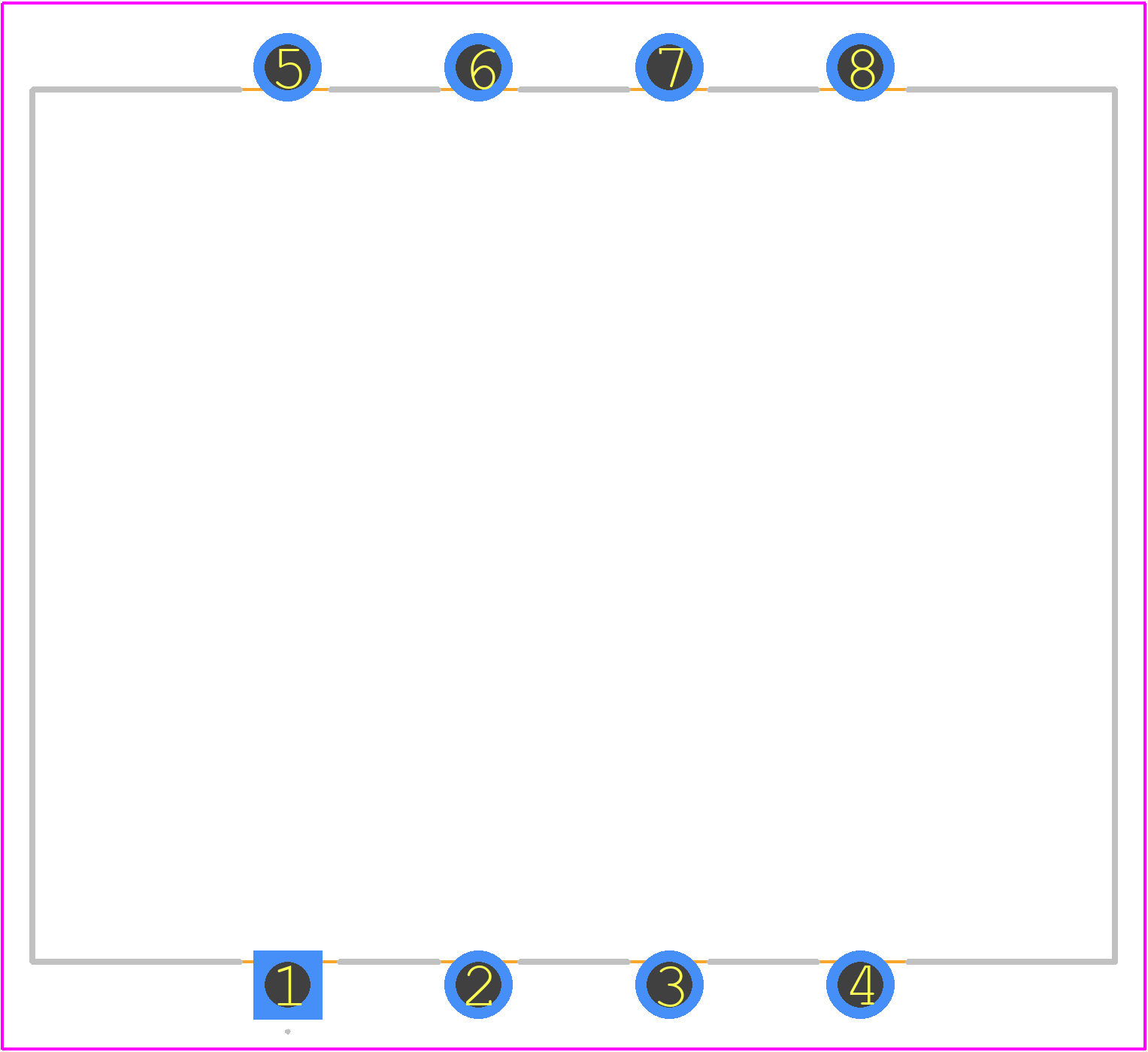

PCB Footprints
FS28-040-C2 - Triad Magnetics PCB footprint - Other - Other - FS28-040-C2-1
click to zoom
3D Models
FS28-040-C2 - Triad Magnetics - 3D model - Other - FS28-040-C2-1
click to zoom

FS28-040-C2 Details

  • Manufacturer Part Number:

    FS28-040-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.08 A

  • Output Voltage 1:

    14 V

  • Output Voltage 2:

    14 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

FS28-040-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FS28-040-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FS28-040-C2 is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10G.
  • The maximum allowable DCR for the FS28-040-C2 is 0.25 ohms per winding, as specified in the datasheet.
  • Yes, the FS28-040-C2 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended PCB layout and spacing for the FS28-040-C2 can be found in the Triad Magnetics application note AN-13, which provides guidelines for optimal PCB design and layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS28-040-C2 Overview

Use the download button to access the FS28-040-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS28-, or try a keyword search, such as Power/Mains Transformers
