FS28-085-C2 footprint, schematic symbol and 3D model by Triad Magnetics

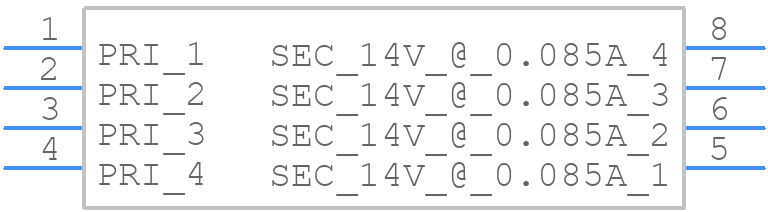

Symbol

click to zoom

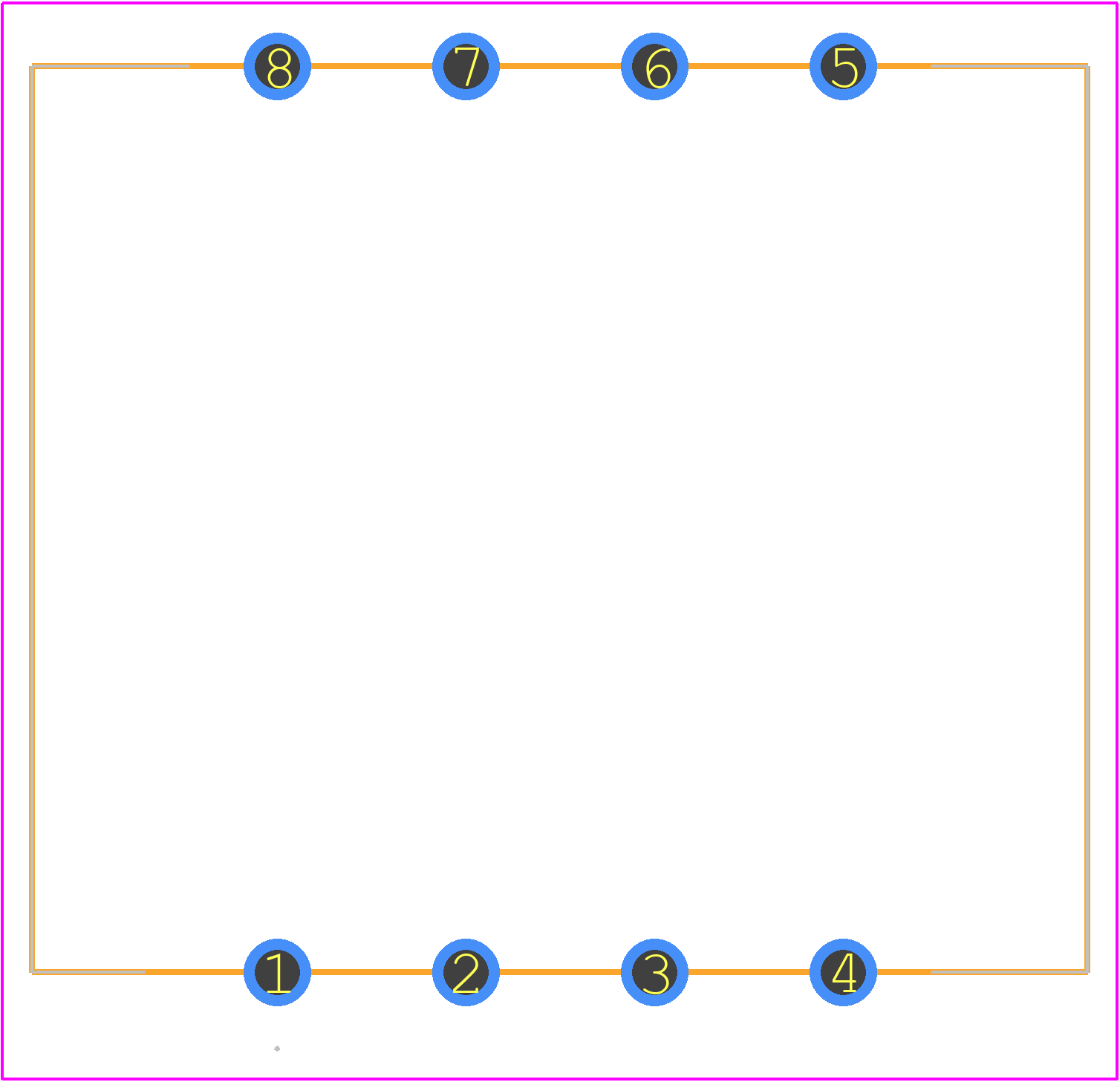

PCB Footprints

FS28-085-C2 - Triad Magnetics PCB footprint - Other - Other - FS28-085-C2-1

click to zoom

3D Models

FS28-085-C2 - Triad Magnetics - 3D model - Other - FS28-085-C2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS28-085-C2
Part Number FS28-085-C2
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FS28-085-C2-1
Released Date Jun 7, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS28-085-C2 Details

Manufacturer Part Number:
FS28-085-C2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CE; CUL; TUV; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
32 mm
Input Voltage-Nom:
230 V
Isolation Voltage:
4200 V
Length:
35.51 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current 1:
0.085 A
Output Voltage 1:
14 V
Output Voltage 2:
14 V
Primary Rating:
DUAL 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
2.5 VA
Width:
30.51 mm

FS28-085-C2 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the FS28-085-C2 is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
Yes, the FS28-085-C2 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
The maximum allowable DCR for the FS28-085-C2 is 0.85 ohms, although the typical DCR is around 0.65 ohms.
Yes, the FS28-085-C2 is designed to operate in high-humidity environments, with a humidity rating of 95% RH at 40°C.
The recommended soldering temperature for the FS28-085-C2 is 260°C (500°F) for 3-5 seconds, with a maximum temperature of 280°C (536°F) for 1-2 seconds.

Trust Checks

Expert Contribution

System Verified

Community Approved

FS28-085-C2 Overview

Use the download button to access the FS28-085-C2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS28-, or try a keyword search, such as Power/Mains Transformers
