FS28-200 footprint, schematic symbol and 3D model by Triad Magnetics

Symbol

click to zoom

PCB Footprints

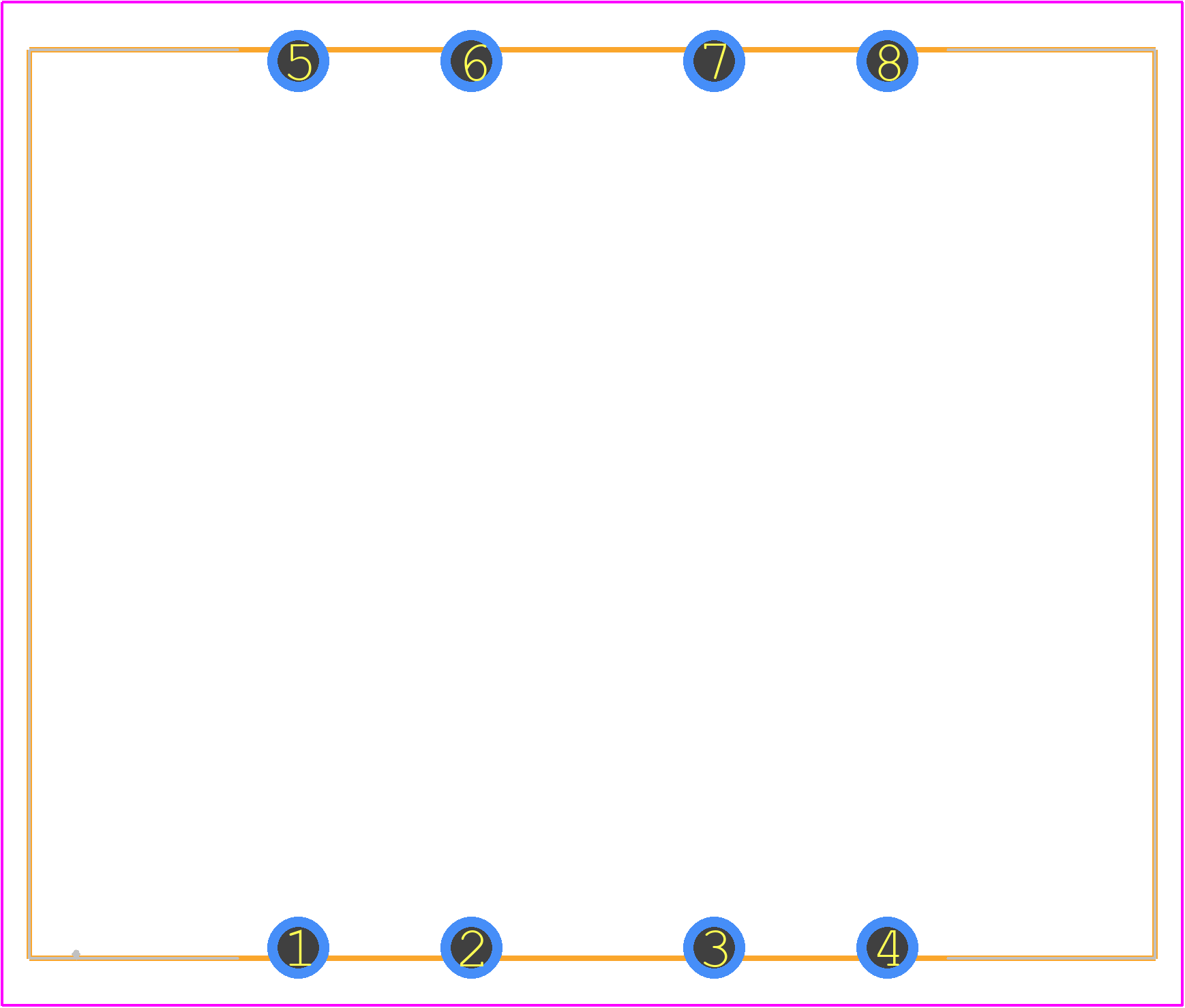

FS28-200 - Triad Magnetics PCB footprint - Other - Other - FS28-200-1

click to zoom

3D Models

FS28-200 - Triad Magnetics - 3D model - Other - FS28-200-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS28-200
Part Number FS28-200
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FS28-200-1
Released Date May 14, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS28-200 Details

Manufacturer Part Number:
FS28-200
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Application:
POWER
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
33.34 mm
Input Voltage-Nom:
230 V
Isolation Voltage:
1500 V
Length:
41.28 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Primary Winding:
2
Number of Secondary Winding:
2
Output Current 1:
0.4 A
Output Voltage 1:
14 V
Output Voltage 2:
14 V
Primary Rating:
DUAL 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
6 VA
Width:
33.34 mm

FS28-200 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the FS28-200 is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
Yes, the FS28-200 is designed to withstand high-vibration environments and meets the vibration requirements of IEC 60068-2-6.
The maximum allowable DCR for the FS28-200 is 0.25 ohms, although the typical DCR is around 0.15 ohms.
Yes, the FS28-200 is designed to operate in humid environments and meets the humidity requirements of IEC 60068-2-78.
Yes, the FS28-200 is designed to withstand high surge currents and has a high saturation current rating, making it suitable for applications with high inrush currents.

Trust Checks

Expert Contribution

System Verified

Community Approved

FS28-200 Overview

Use the download button to access the FS28-200 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS28-, or try a keyword search, such as Power/Mains Transformers
