FS28-420-C2 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Class 2/3, 12 V A, 14/28VDC (Nominal Secondary) Output, 28VDC CT at 0.42A Secondary in Series, 14VDC at 0.84A Secondary in Parallel, 2 Inch Width

Download FS28-420-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS28-420-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

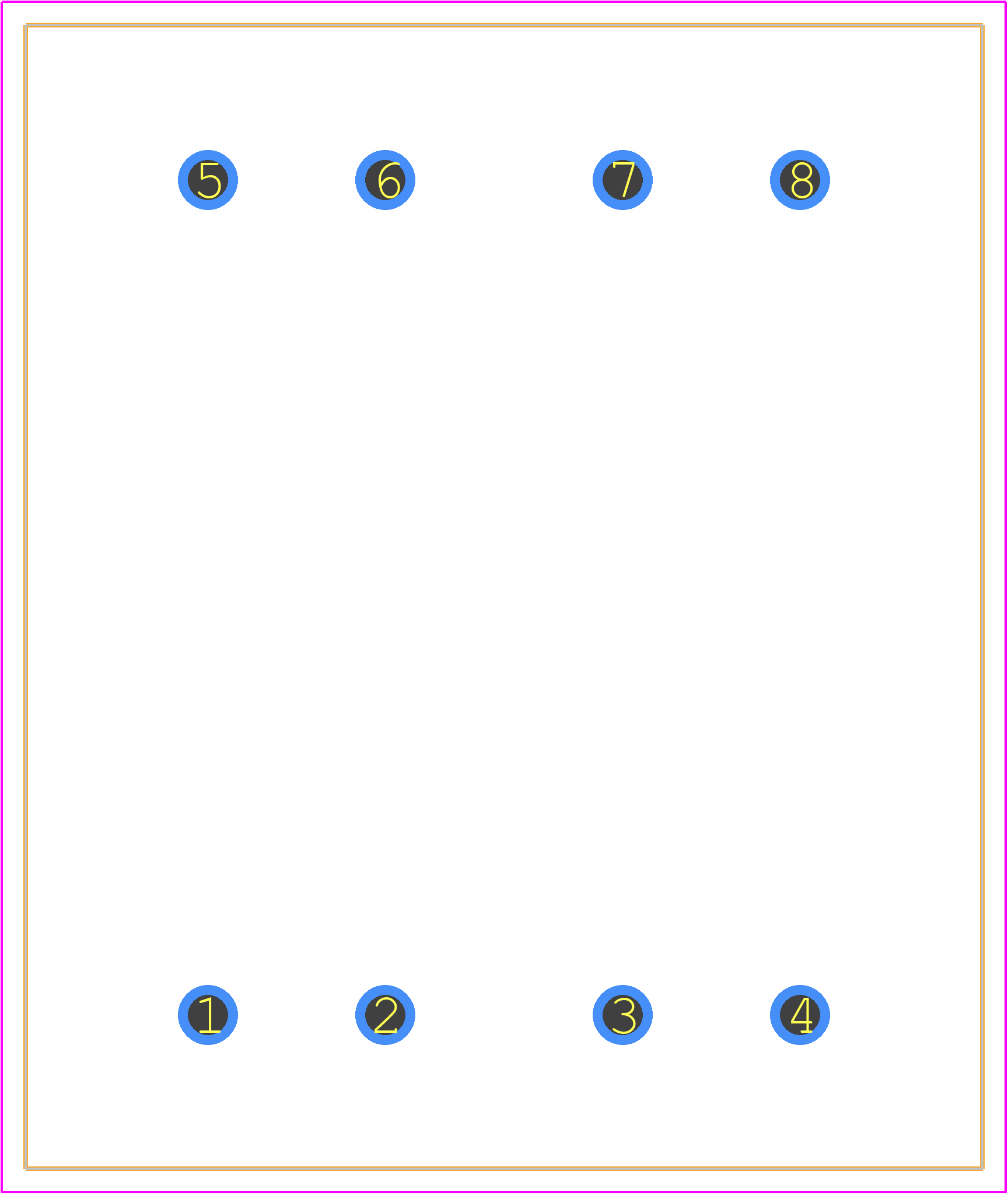

FS28-420-C2 - Triad Magnetics PCB footprint - Other - Other - FS28-420-C2-1
click to zoom
3D Models
FS28-420-C2 - Triad Magnetics - 3D model - Other - FS28-420-C2-1
click to zoom

FS28-420-C2 Details

  • Manufacturer Part Number:

    FS28-420-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    36.51 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    47.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.84 A

  • Output Voltage 1:

    14 V

  • Output Voltage 2:

    14 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    39.69 mm

FS28-420-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FS28-420-C2 is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
  • Yes, the FS28-420-C2 is designed to operate in humid environments, but it's recommended to follow proper conformal coating and encapsulation procedures to ensure reliability.
  • The maximum allowable voltage imbalance between the primary and secondary windings is ±10% to ensure reliable operation and prevent premature failure.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink if necessary, and ensuring that the transformer is mounted on a suitable PCB with thermal vias.
  • Yes, the FS28-420-C2 is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and securing procedures to ensure reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS28-420-C2 Overview

Use the download button to access the FS28-420-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS28-, or try a keyword search, such as Power/Mains Transformers
