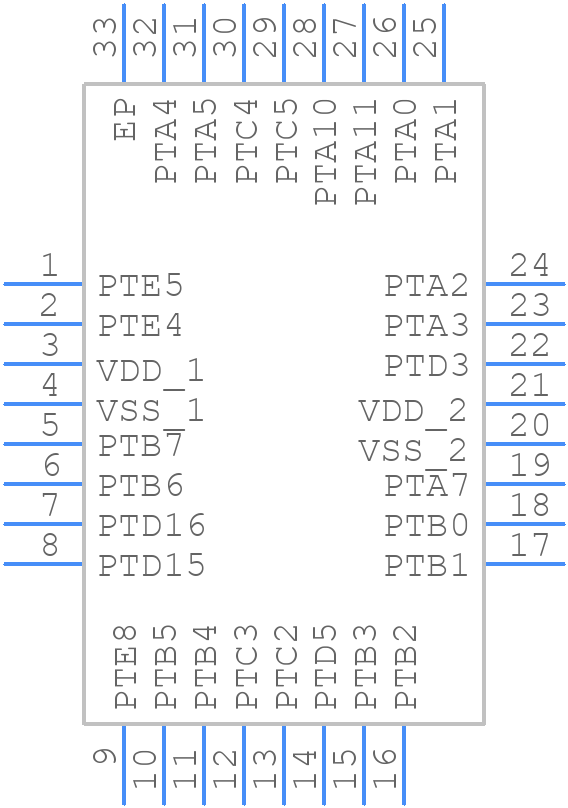

FS32K116LIT0VFMT - NXP

FS32K116LIT0VFMT Details

• Manufacturer Part Number:

  FS32K116LIT0VFMT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-32

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  11

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  Cortex-M0+

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING-POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQCC-N32

• Length:

  5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  16

• Number of I/O Lines:

  28

• Number of Serial I/Os:

  2

• Number of Terminals:

  32

• Number of Timers:

  18

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  17408

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Screening Level:

  ISO 26262

• Seated Height-Max:

  0.85 mm

• Speed:

  48 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
