The recommended PCB footprint for the FS48-125-C2 is a rectangular pad with dimensions of 0.375 inches (9.5 mm) x 0.25 inches (6.4 mm) with a 0.05 inch (1.3 mm) hole in the center for the transformer's pin.
Yes, the FS48-125-C2 is designed for use in switching power supply applications, including flyback, forward, and resonant converters. However, it's essential to ensure that the transformer is properly designed and implemented to meet the specific requirements of your application.
The maximum operating temperature of the FS48-125-C2 is 130°C, with a maximum storage temperature of 150°C. Operating the transformer above the recommended temperature range may reduce its lifespan and affect its performance.
Yes, the FS48-125-C2 is designed and manufactured to meet the requirements of high-reliability applications, including military, aerospace, and medical devices. However, it's essential to ensure that the transformer is properly specified, designed, and tested for your specific application.
Yes, the FS48-125-C2 can be used in a push-pull converter topology, but it's essential to ensure that the transformer is properly designed and implemented to meet the specific requirements of your application, including the correct turns ratio, magnetizing inductance, and leakage inductance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS48-125-C2 Overview

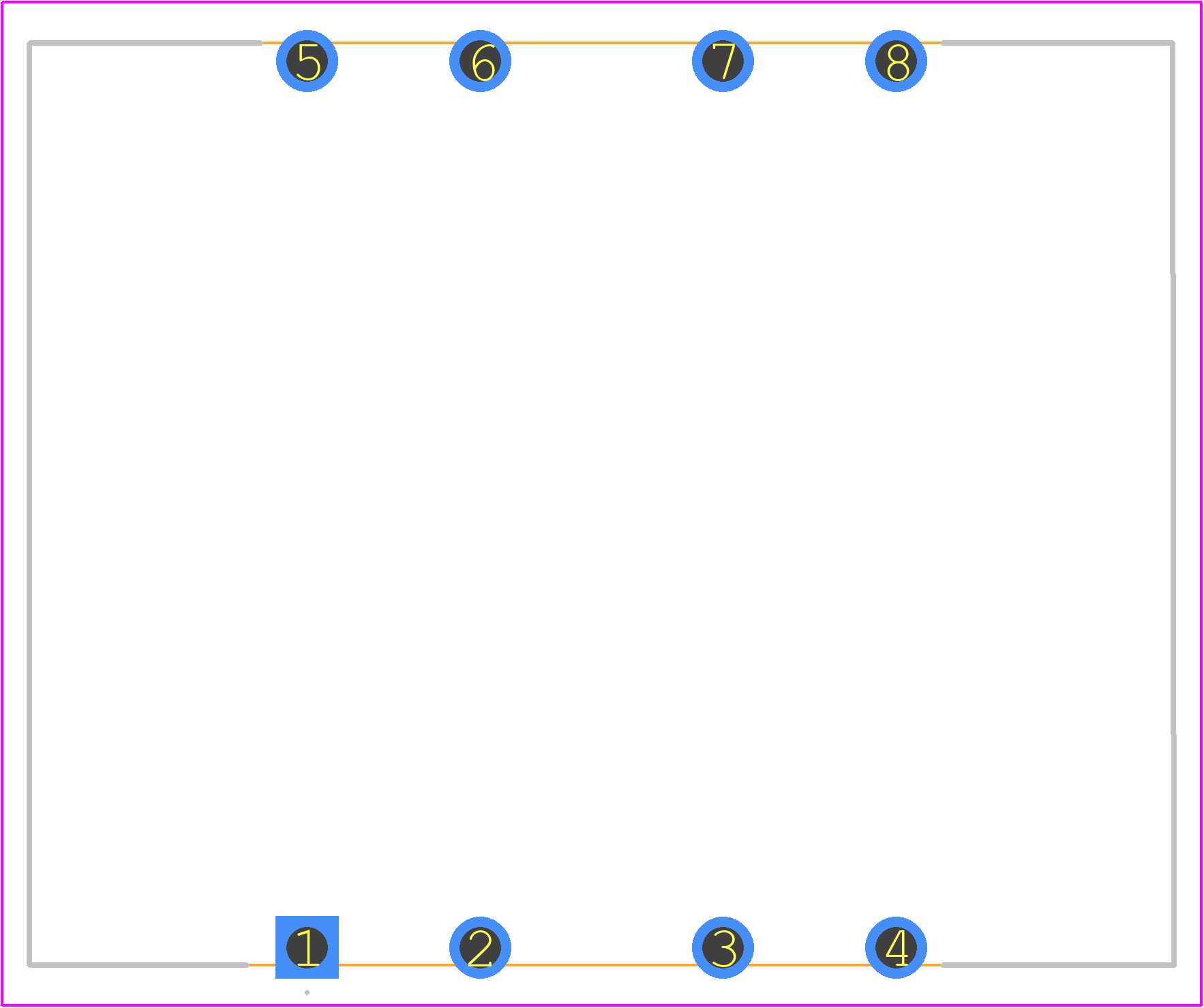

Use the download button to access the FS48-125-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS48-,
or try a keyword search, such as Power/Mains Transformers
