FS48-750 - Triad Magnetics

Description: Power Transformers POWER XFMR 48.0Vct@0.750A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS48-750

Download FS48-750 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS48-750 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

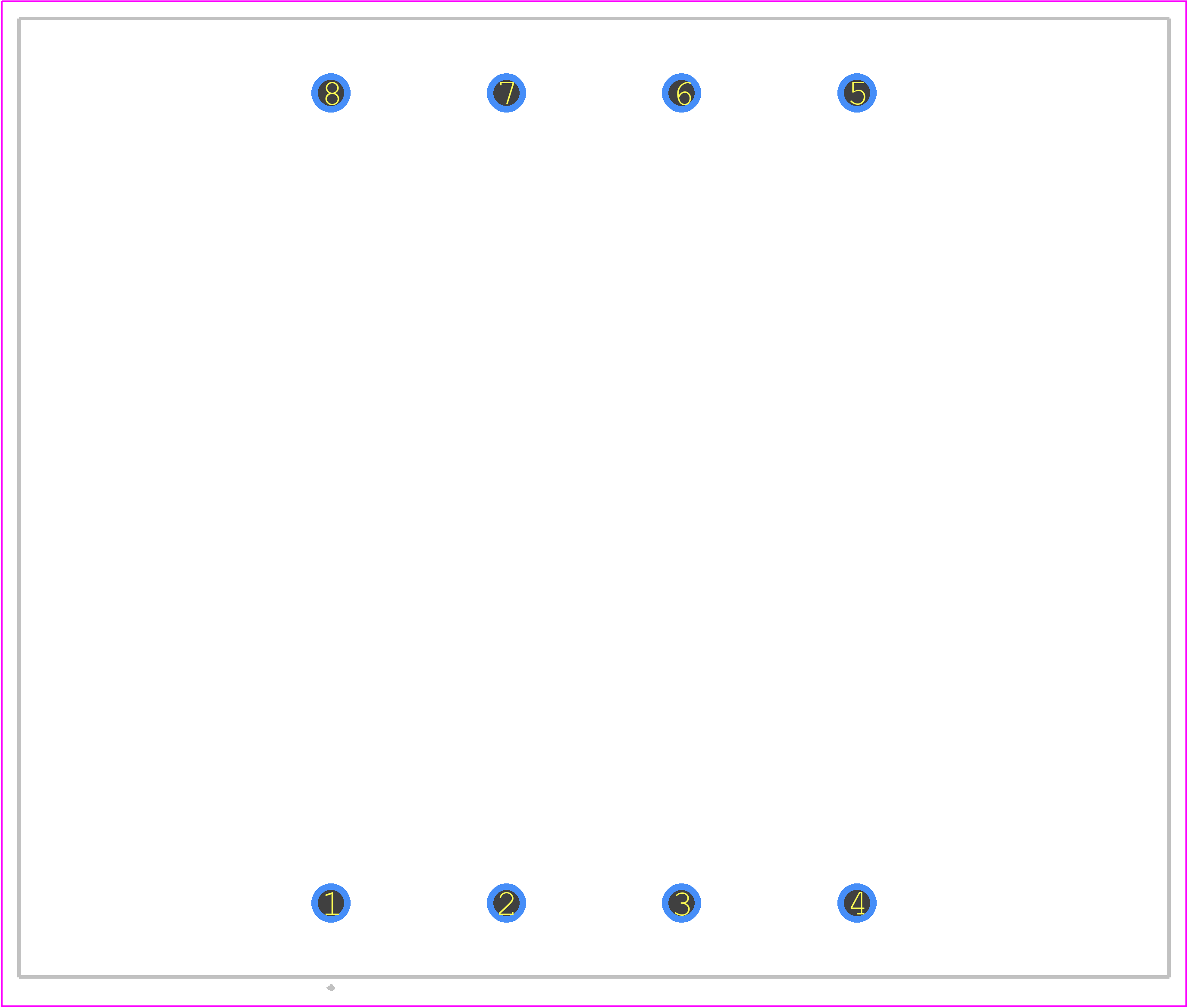

FS48-750 - Triad Magnetics PCB footprint - Other - Other - FS48-750-1
click to zoom
3D Models
FS48-750 - Triad Magnetics - 3D model - Other - FS48-750-1
click to zoom

FS48-750 Details

  • Manufacturer Part Number:

    FS48-750

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.69 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    66.68 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.5 A

  • Output Voltage 1:

    24 V

  • Output Voltage 2:

    24 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    36 VA

  • Width:

    55.56 mm

FS48-750 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FS48-750 is -40°C to 85°C, with a maximum storage temperature of 120°C.
  • Yes, the FS48-750 is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • The FS48-750 is rated for operation up to 10,000 feet (3,048 meters) above sea level.
  • Yes, the FS48-750 is designed to operate in humid environments and meets the IEC 60068-2-78 humidity test standard.
  • Yes, the FS48-750 is designed to meet the requirements for use in Class I, Division 2 hazardous locations, but it must be installed and used in accordance with the applicable safety standards and regulations.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

FS48-750 Overview

Use the download button to access the FS48-750 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS48-, or try a keyword search, such as Power/Mains Transformers
