Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) spacing between the transformer and other components, and a PCB layout that minimizes noise coupling and electromagnetic interference (EMI). A good layout practice is to keep the transformer away from high-frequency components and to use a ground plane to reduce noise.
To ensure reliable operation over the full temperature range of -40°C to 125°C, it's essential to follow proper storage, handling, and installation procedures. Avoid exposing the transformer to mechanical stress, moisture, or extreme temperatures during storage or operation. Also, ensure that the transformer is properly secured to the PCB and that the windings are not subjected to excessive vibration or mechanical stress.
Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and to prevent overheating. Excessive voltage imbalance can lead to reduced transformer efficiency, increased heat generation, and potentially even transformer failure.
The FS56-110-C2 transformer is designed for general-purpose applications and may not meet the requirements for high-reliability or safety-critical applications. For such applications, Triad Magnetics offers specialized transformers that meet specific industry standards, such as UL, IEC, or MIL-PRF. It's essential to consult with Triad Magnetics or a qualified engineer to determine the suitability of this transformer for a specific high-reliability or safety-critical application.
The optimal operating frequency for the FS56-110-C2 transformer depends on the specific application and the desired performance characteristics. Triad Magnetics recommends operating the transformer within the frequency range of 50 kHz to 200 kHz for optimal efficiency and performance. However, the transformer can operate at frequencies up to 500 kHz, depending on the specific application requirements. It's essential to consult the datasheet and application notes for more information on frequency selection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS56-110-C2 Overview

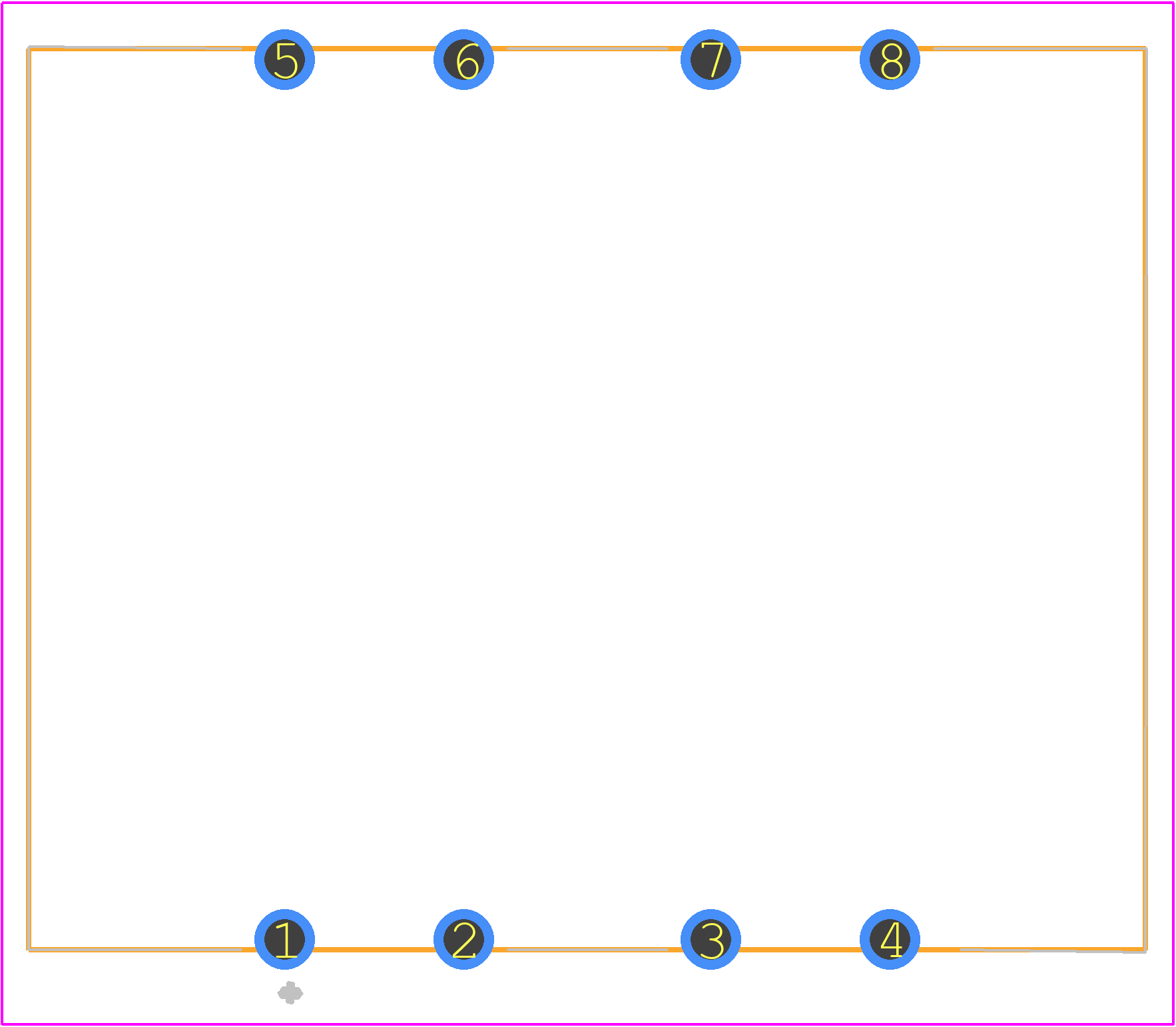

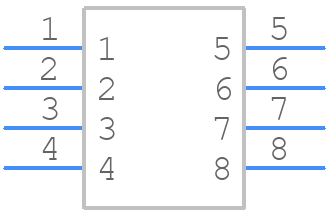

Use the download button to access the FS56-110-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS56-,
or try a keyword search, such as Power/Mains Transformers
