The recommended torque for the FS57003PLT2B2M2QE's actuator is typically around 0.5-1.5 N·m (7-21 in-lbs). However, it's best to consult the manufacturer's application notes or contact their support team for specific guidance.
The FS57003PLT2B2M2QE is designed to withstand moderate vibrations, but it's essential to evaluate the specific vibration profile of your application. E-Switch Inc recommends consulting their vibration testing data and performing additional testing if necessary to ensure the switch's reliability.
While the datasheet specifies an operating temperature range of -20°C to 85°C, it's essential to note that the switch's reliability and lifespan may be affected at extreme temperatures. For reliable operation, it's recommended to operate the switch within a temperature range of 0°C to 70°C.
The FS57003PLT2B2M2QE has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's crucial to ensure proper sealing and protection of the switch's electrical connections to prevent water ingress.
The FS57003PLT2B2M2QE is rated for a minimum of 50,000 actuations, but this can vary depending on the application, operating conditions, and maintenance. It's essential to consult E-Switch Inc's reliability data and perform regular maintenance to ensure the switch's optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS57003PLT2B2M2QE Overview

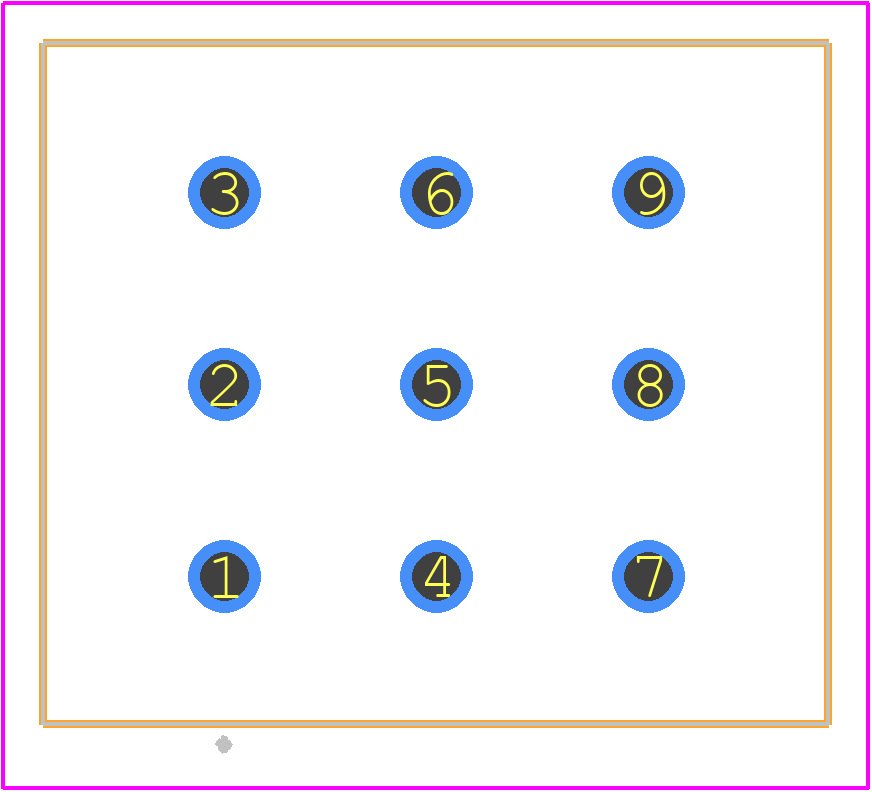

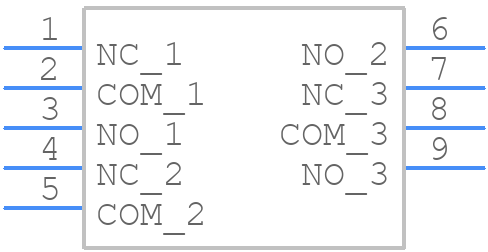

Use the download button to access the FS57003PLT2B2M2QE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS570,
or try a keyword search, such as Pushbutton Switches
