A good PCB layout for the FSA2268UMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The FSA2268UMX requires a single 2.5V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply. The power sequencing requirement is to power up the VDD pin before the VCC pin. A soft-start circuit can be used to ensure a smooth power-up sequence.
The maximum current rating of the FSA2268UMX is 100mA. To calculate the power dissipation, use the formula: Pd = (VIN x IIN) + (VOUT x IOUT), where VIN is the input voltage, IIN is the input current, VOUT is the output voltage, and IOUT is the output current.
To optimize the FSA2268UMX for EMI and RFI performance, use a shielded enclosure, keep the PCB layout compact, use a common-mode choke, and add EMI filters at the input and output. Additionally, use a low-ESR output capacitor and a ferrite bead on the output to reduce high-frequency noise.
The recommended operating temperature range for the FSA2268UMX is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA2268UMX Overview

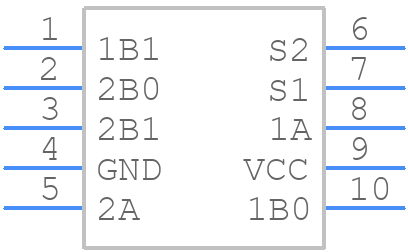

Use the download button to access the FSA2268UMX schematic symbol, PCB footprint, and 3D model.
