FSA2269TSUMX - onsemi

Description: Analog Switch ICs LV Dual-SPDT 0.4Ohm Analog Switch

Download FSA2269TSUMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

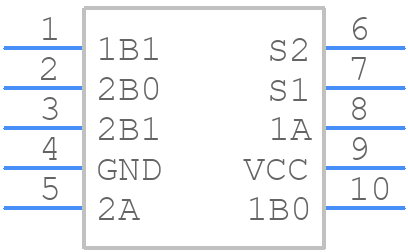

Symbol
FSA2269TSUMX - onsemi - PCB symbol
click to zoom
PCB Footprints
FSA2269TSUMX - onsemi PCB footprint - Other - Other - FSA2269TSUMX-2
click to zoom
3D Models
FSA2269TSUMX - onsemi - 3D model - Other - FSA2269TSUMX-2
click to zoom

FSA2269TSUMX Details

  • Manufacturer Part Number:

    FSA2269TSUMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    UMLP-10

  • Manufacturer Package Code:

    523BC

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    0.8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Signal Current-Max:

    0.35 A

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    55 ns

  • Switch-on Time-Max:

    100 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

FSA2269TSUMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSA2269TSUMX involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors and resistors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The FSA2269TSUMX requires a single 1.8V power supply. It's recommended to power the device using a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirement is to power up the VDD pin before the VDDIO pin.
  • A 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric is recommended for the VDD pin, and a 1uF to 4.7uF ceramic capacitor with an X5R or X7R dielectric is recommended for the VDDIO pin. The capacitor should be placed as close to the pin as possible.
  • The FSA2269TSUMX is a highly configurable device. For specific applications, refer to the onsemi application notes and design guides, which provide detailed configuration and layout recommendations for USB-C, DisplayPort, and other applications.
  • The FSA2269TSUMX has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. A thermal via array can also be used to improve heat dissipation. The device can operate up to 85°C ambient temperature.
