A good PCB layout for the FSA2269UMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The FSA2269UMX requires a single 2.5V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply. The power sequencing requirement is to power up the VCC pin before the EN pin. The EN pin should be pulled high after the VCC pin has reached its nominal voltage.
The maximum current rating of the FSA2269UMX is 200mA. To calculate the power dissipation, use the formula: Pd = (VIN x IIN) + (VOUT x IOUT), where VIN is the input voltage, IIN is the input current, VOUT is the output voltage, and IOUT is the output current.
To optimize the FSA2269UMX for EMI and EMC performance, use a shielded inductor, keep the layout compact, and use a common-mode choke. Also, ensure that the device is placed away from noise sources and that the PCB has a solid ground plane.
The FSA2269UMX has a thermal pad that must be connected to a thermal plane on the PCB. The junction temperature can be calculated using the formula: TJ = TA + (PD x θJA), where TA is the ambient temperature, PD is the power dissipation, and θJA is the junction-to-ambient thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA2269UMX Overview

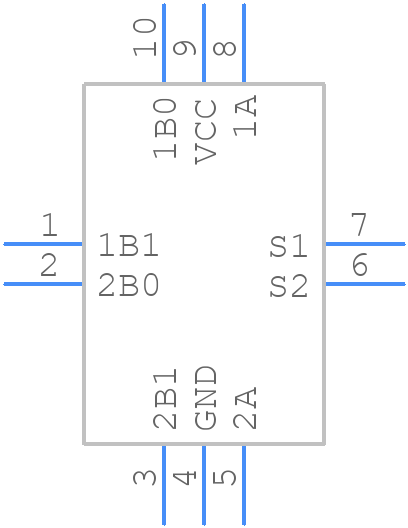

Use the download button to access the FSA2269UMX schematic symbol, PCB footprint, and 3D model.
