FSA2275AUMX - onsemi

Description: THD+N = -105 dB; 2 VRMS, 20 kΩ Load; f=1 kHz ; External Capacitor Connection for Pop and Click noise suppression; VDD Operating Range: 2.5 to 5.5 V; RON = 0.5 Ω (Typ.) at 2.5 V VDD; Power-Off Protection on Common Ports; 12-Lead UMLP 1.8 mm x 1.8 mm; XTALK = -134 dB at 1 VRMS, 50 Ω Load; f = 1 kHz; Off Isolation = -103 dB at 1 VRMS, 50 Ω Load; f = 1 kHz

Download FSA2275AUMX Model

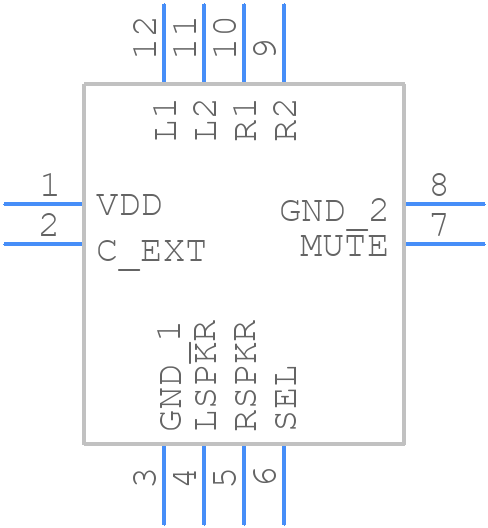

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA2275AUMX - onsemi PCB footprint - Other - Other - FSA2275AUMX-4
click to zoom
3D Models
FSA2275AUMX - onsemi  - 3D model - Other - FSA2275AUMX-4
click to zoom

FSA2275AUMX Details

  • Manufacturer Part Number:

    FSA2275AUMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-12

  • Package Description:

    UMLP-12

  • Manufacturer Package Code:

    523BE

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    92 dB

  • On-state Resistance Match-Nom:

    0.065 Ω

  • On-state Resistance-Max (Ron):

    1 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

FSA2275AUMX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Ensure the input voltage is within the recommended range (2.7V to 5.5V) and the enable pin (EN) is properly biased to VCC or GND. A 10kΩ pull-up resistor on the EN pin is recommended.
  • The maximum current draw is 150mA, but this can vary depending on the input voltage and output load. Ensure the power supply can provide the required current to avoid voltage drops.
  • Use a TVS diode or a zener diode to protect against overvoltage. For ESD protection, use a series resistor and a capacitor to filter out high-frequency noise.
  • A 1μF to 10μF ceramic capacitor is recommended for input decoupling, depending on the input voltage and frequency of operation.
