FSA2275UMX - onsemi

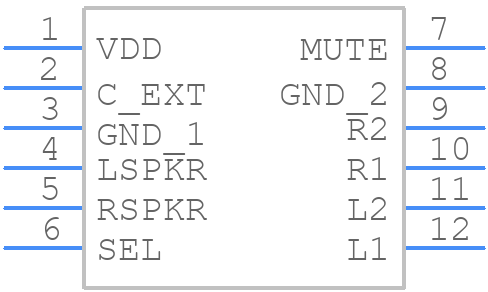

FSA2275UMX Details

• Manufacturer Part Number:

  FSA2275UMX

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  UQFN-12

• Package Description:

  VQCCN,

• Manufacturer Package Code:

  523BE

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Philippines

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  8

• Analog IC - Other Type:

  AUDIO/VIDEO SWITCH

• JESD-30 Code:

  S-XQCC-N12

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO/NC

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  12

• Off-state Isolation-Nom:

  92 dB

• On-state Resistance Match-Nom:

  0.065 Ω

• On-state Resistance-Max (Ron):

  1 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.6 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.8 mm
