Description:12-Lead UMLP 1.8 mm x 1.8 mm; VDD Operating Range: 1.65 to 5.5 V; External Capacitor Connection for Pop and Click; RON = 0.5 Ώ (Typ.) at 1.8 V; XTALK = -122 dB at 1 VRMS, 50 Ώ Load; f = 1 kHz; Power-Off Protection on Common Ports; Noise Suppression; Off Isolation = -115 dB at 1 VRMS, 50 Ώ Load; f = 1 kHz; THD+N = -115 dB; 2 VRMS, 20 kΏ Load; f = 1 kHz
A good PCB layout for the FSA2276UMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the FSA2276UMX operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage does not exceed the recommended maximum rating. Also, ensure the output current is within the specified range to prevent overheating.
The FSA2276UMX has a high power density, so thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal pad should be connected to a solid ground plane to improve heat dissipation.
To troubleshoot issues with the FSA2276UMX, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes, ringing, or other anomalies. If issues persist, consult the datasheet and application notes for guidance.
To minimize EMI and EMC issues with the FSA2276UMX, use a shielded enclosure, and ensure the device is placed away from sensitive circuits. Use a common-mode choke or ferrite bead to filter the input voltage, and consider adding a snubber circuit to reduce EMI emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA2276UMX Overview

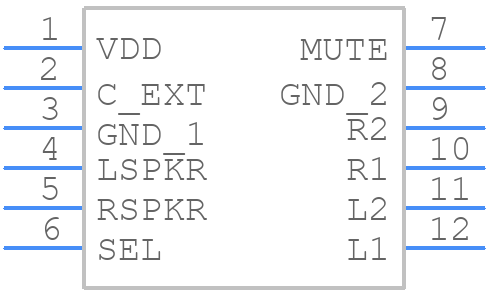

Use the download button to access the FSA2276UMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA22,
or try a keyword search, such as Multiplexers or Switches
