FSA551UCX - onsemi

Description: Last Shipments - Dual SPST Depletion Mode Audio Switch with Negative Swing

Download FSA551UCX Model

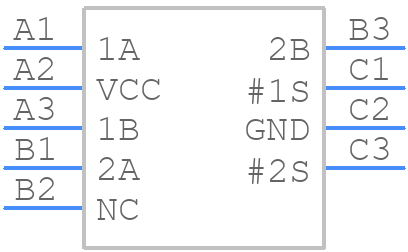

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA551UCX - onsemi PCB footprint - BGA - BGA - FSA551UCX
click to zoom
3D Models
FSA551UCX - onsemi  - 3D model - BGA - FSA551UCX
click to zoom

FSA551UCX Details

  • Manufacturer Part Number:

    FSA551UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP-9

  • Package Description:

    WLCSP-9

  • Manufacturer Package Code:

    567SV

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.38 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    0.01 Ω

  • On-state Resistance-Max (Ron):

    0.6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.619 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Supply Voltage-Max (Vsup):

    3 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.21 mm

FSA551UCX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSA551UCX involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a 10kΩ resistor, and connect the FB pin to the output voltage through a resistive divider. The resistive divider should be chosen such that the FB pin is biased at around 0.6V.
  • The FSA551UCX can handle input voltages up to 24V, but it's recommended to keep the input voltage below 20V for optimal performance and to prevent overheating.
  • The output voltage of the FSA551UCX can be calculated using the following formula: VOUT = 0.6V x (R1 + R2) / R2, where R1 and R2 are the resistors in the resistive divider connected to the FB pin.
  • The FSA551UCX can deliver up to 1.5A of output current, but it's recommended to keep the output current below 1.2A for optimal performance and to prevent overheating.
