A good PCB layout for the FSA641UMX involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended biasing circuit in the datasheet, which includes a voltage divider network to set the output voltage. Also, ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
The FSA641UMX can handle a maximum output current of 200mA. However, it's recommended to keep the output current below 150mA for optimal performance and to prevent overheating.
To protect the FSA641UMX from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure that the input voltage remains within the recommended range. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
To manage thermal performance, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FSA641UMX Overview

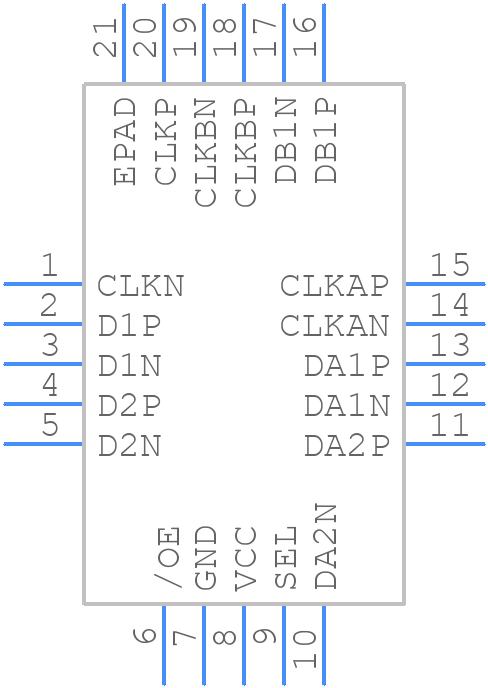

Use the download button to access the FSA641UMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA64,
or try a keyword search, such as Multiplexers or Switches
