FSB117HNY - onsemi

Description: Fairchild Semiconductor FSB117HNY, 1-Channel Intelligent Power Switch, Power Interface Switch, 4A, 30V, 1.5W 8-Pin, PDIP

Download ECAD Model

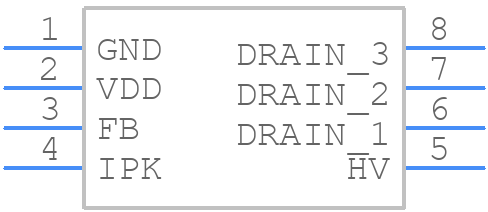

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

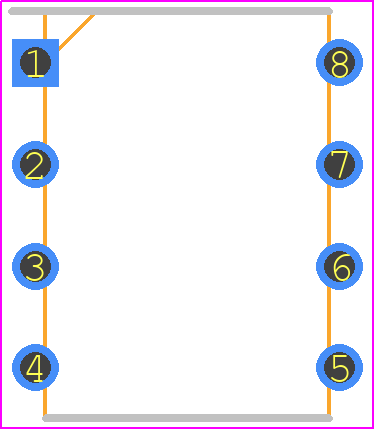

FSB117HNY - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FSB117HNY
click to zoom

3D Models

FSB117HNY - onsemi  - 3D model - Dual-In-Line Packages - FSB117HNY
click to zoom

FSB117HNY Details

  • Manufacturer Part Number:

    FSB117HNY

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP, DIP8,.3

  • Manufacturer Package Code:

    646CN

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • Risk Rank:

    9.35

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.5885 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Subcategory:

    Switching Regulator or Controllers

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    106 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
