FSDM0365RL - onsemi

Description: IC SWIT PWM GREEN CM OVP HV 8SOP

Download FSDM0365RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

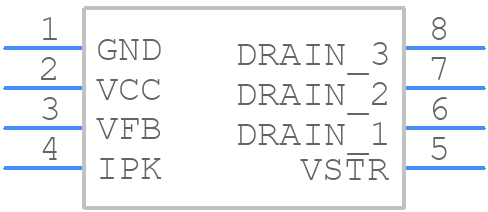

Symbol
FSDM0365RL - onsemi - PCB symbol
click to zoom
PCB Footprints
FSDM0365RL - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead LSOP
click to zoom
3D Models
FSDM0365RL - onsemi - 3D model - Small Outline Packages - 8 Lead LSOP
click to zoom

FSDM0365RL Details

  • Manufacturer Part Number:

    FSDM0365RL

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    LSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    9.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2.41 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    3.7 mm

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    73 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    6.4 mm

FSDM0365RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FSDM0365RL is -40°C to 150°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, ensure that the input voltage (VIN) is within the recommended range of 4.5V to 5.5V.
  • To minimize EMI and noise, use a multi-layer PCB with a solid ground plane, and keep the FSDM0365RL away from high-frequency components. Also, use short, direct traces for the input and output pins, and avoid routing signals under the device.
  • For high-power applications, ensure good thermal conductivity by using a heat sink or thermal pad on the FSDM0365RL. Also, keep the device away from other heat sources, and ensure good airflow around the device.
  • The recommended input capacitor is a 10uF ceramic capacitor, and the recommended output capacitor is a 22uF ceramic capacitor. These values can be adjusted based on the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSDM0365RL Overview

Use the download button to access the FSDM0365RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSDM0, or try a keyword search, such as Switching Regulator or Controllers
