Part Image

FSL136MR - onsemi

Description: Adjustable Peak Current Limit; Built-in Soft-Start: 15ms ; Under-Voltage Lockout (UVLO) ; Internal Avalanche-Rugged SenseFET (650V) ; Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown Function with Hysteresis (TSD) ; Low Operating Current: 1.8mA ; Pulse-by-Pulse Current Limiting ; Internal Startup Circuit ; Auto-Restart Mode ; Under 50mW Standby Power Consumption at 265VAC, No-load

Download FSL136MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

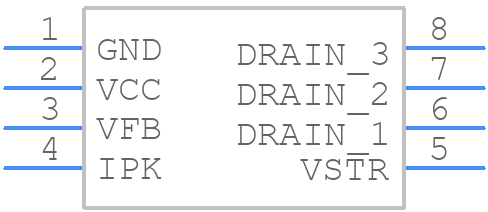

FSL136MR - onsemi - PCB symbol
click to zoom
PCB Footprints
FSL136MR - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8-ren1
click to zoom
3D Models
FSL136MR - onsemi - 3D model - Dual-In-Line Packages - DIP-8-ren1
click to zoom

FSL136MR Details

  • Manufacturer Part Number:

    FSL136MR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-8

  • Manufacturer Package Code:

    646CM

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    34 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-609 Code:

    e3

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FSL136MR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FSL136MR is -40°C to 150°C.
  • To ensure proper biasing, connect the input pins to a voltage source that meets the recommended operating conditions, and ensure the output pins are properly terminated with a load resistor.
  • For optimal thermal performance, use a multi-layer PCB with a solid ground plane, and ensure good thermal conductivity between the device and the PCB. A heat sink may be required for high-power applications.
  • Handle the device by the body, not the leads, and use an ESD wrist strap or mat when handling the device. Ensure the PCB has ESD protection components, such as TVS diodes, and follow proper ESD handling procedures.
  • Use a soldering iron with a temperature of 250°C to 260°C, and ensure the soldering time is less than 3 seconds. Use a solder with a melting point of 180°C to 190°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSL136MR Overview

Use the download button to access the FSL136MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSL13, or try a keyword search, such as Power Management Circuits
