FSL206MRN - onsemi

Description: <25mW with Bias Winding for FSL206MR ; <30mW with Bias Winding for FSL206MRBN • No Need for Auxiliary Bias Winding • Frequency Modulation for Attenuating EMI • Line Under-Voltage Protection (LUVP) • Pulse-by-Pulse Current Limiting • Low Under-Voltage Lockout (UVLO) • Ultra-Low Operating Current: 300µA • Built-In Soft-Start and Startup Circuit • Various Protections: Overload Protection (OLP),Over-Voltage Protection (OVP), Thermal Shutdown(TSD), Abnormal Over-Current Protection (AOCP),Auto-Restart Mode for Al

Download FSL206MRN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

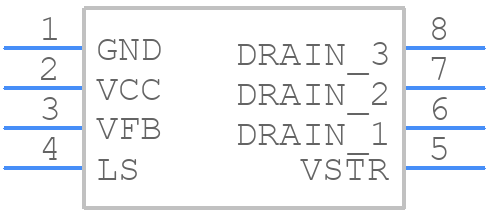

Symbol
FSL206MRN - onsemi - PCB symbol
click to zoom
PCB Footprints
FSL206MRN - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.42x6.38, 2.54P CASE 646CM ISSUE O
click to zoom
3D Models
FSL206MRN - onsemi - 3D model - Dual-In-Line Packages - PDIP8 9.42x6.38, 2.54P CASE 646CM ISSUE O
click to zoom

FSL206MRN Details

  • Manufacturer Part Number:

    FSL206MRN

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CM

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS PFM CONTROL TECH

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    650 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.415 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.66 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    73 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

FSL206MRN Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • The FSL206MRN has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2kV HBM (Human Body Model) and 200V MM (Machine Model) ESD protection is recommended.
  • Yes, the FSL206MRN is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly validated and qualified for the specific application.
  • Start by verifying the power supply voltage, input signals, and output loads. Check for any signs of overheating, and ensure that the device is operated within the recommended specifications. If issues persist, consult the onsemi support team or a qualified engineer for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSL206MRN Overview

Use the download button to access the FSL206MRN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSL20, or try a keyword search, such as Switching Regulator or Controllers
