FSM104 - TE Connectivity

Description: 50 mA Tactile Switch, Round Actuator, NO, Brass, Silver Contact Plating, Low Profile, 24 VDC, ALCOSWITCH FSM100-104

Download FSM104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FSM104 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

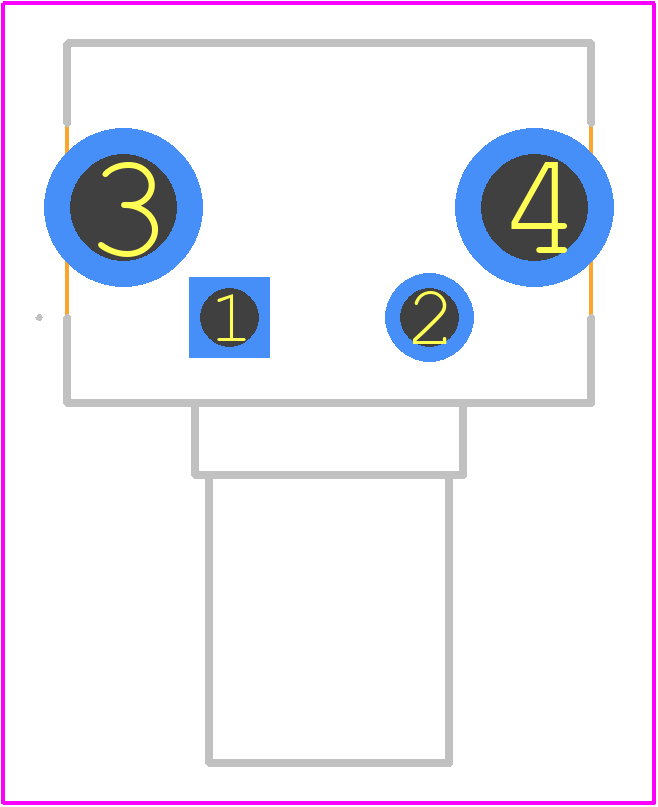

FSM104 - TE Connectivity PCB footprint - Other - Other - FSM104-4
click to zoom
3D Models
FSM104 - TE Connectivity - 3D model - Other - FSM104-4
click to zoom

FSM104 Details

  • Manufacturer Part Number:

    FSM104

  • Brand Name:

    Alcoswitch

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.283 inch

  • Actuator Material:

    POLYESTER

  • Actuator Type:

    ROUND/EXTENDED TYPE

  • Body Breadth:

    8.992 mm

  • Body Color:

    BLACK

  • Body Height:

    14.68 mm

  • Body Length or Diameter:

    13.11 mm

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    .05A@24VDC

  • Contact Function:

    ON-OFF

  • Contact Voltage(DC)-Max:

    24 V

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    BRASS

  • Housing Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    1.568 N

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Packing Method:

    BULK

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

FSM104 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane for the FSM104. The signal traces should be routed away from the power planes to minimize noise and EMI.
  • To ensure reliable connections, make sure to clean the spring fingers before mating, apply a gentle and even pressure during mating, and avoid over-tightening or over-mating the connectors.
  • The FSM104 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the FSM104 is designed to withstand high-vibration environments, but it's essential to follow proper mounting and securing procedures to ensure reliable connections and prevent damage.
  • To prevent ESD damage, use ESD-protective equipment, such as wrist straps and mats, when handling the FSM104. Also, ensure that the PCB and components are properly grounded during assembly and testing.
