FSN-21A-18 - TE Connectivity

Description: FFC / FPC Jumper Cables 1" 18 CONDUCTOR .100 Nomex

Download FSN-21A-18 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FSN-21A-18 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

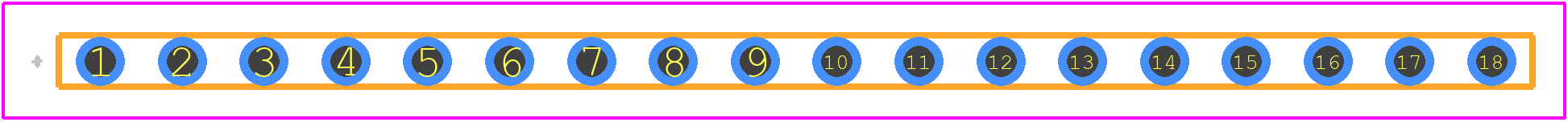

FSN-21A-18 - TE Connectivity PCB footprint - Other - Other - FSN-21A-18-1
click to zoom
3D Models
FSN-21A-18 - TE Connectivity - 3D model - Other - FSN-21A-18-1
click to zoom

FSN-21A-18 Details

  • Manufacturer Part Number:

    FSN-21A-18

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Length:

    1 inch

  • Cable Types:

    SOLID

  • Characteristic Impedance:

    117 Ω

  • Connector Type:

    SHUNT

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

  • Wire Size-Max:

    24 AWG

FSN-21A-18 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the FSN-21A-18 connector, but it's always best to consult the specific application requirements and TE Connectivity's guidelines.
  • Yes, the FSN-21A-18 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial, automotive, and aerospace.
  • Yes, the FSN-21A-18 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH. However, it's essential to consult the datasheet and TE Connectivity's guidelines for specific environmental requirements.
  • The FSN-21A-18 connector has a mating cycle life of 500 cycles minimum, but this can vary depending on the specific application and usage. It's recommended to consult TE Connectivity's guidelines and testing results for more information.
  • Yes, the FSN-21A-18 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSN-21A-18 Overview

Use the download button to access the FSN-21A-18 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSN-2, or try a keyword search, such as Other Interconnects

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
